HZ530

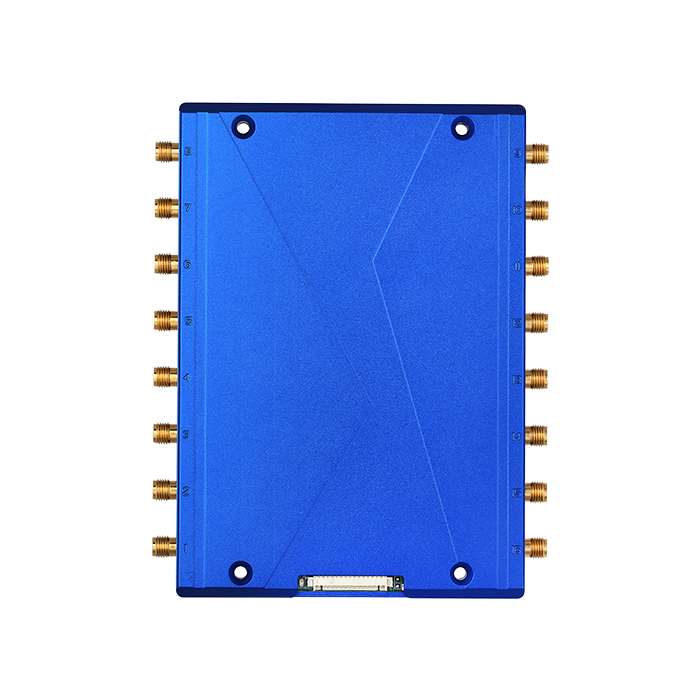

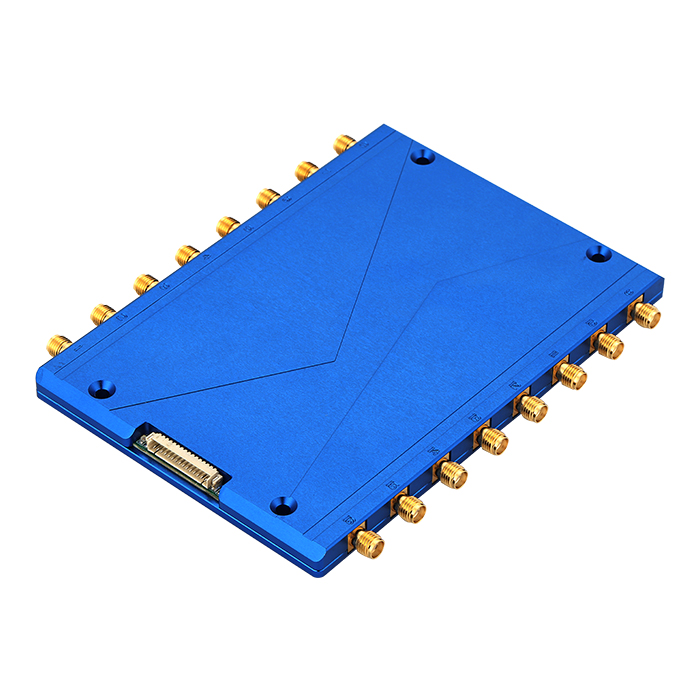

16-Port UHF RFID Module

HZ530 16-Port UHF RFID Module is specialized module for developing 16-port fixed RFID reader
and Smart RFID cabinet system. Based on Impinj R2000 chip platform,
with 16 channels of SMA interfaces for RFID antennas, support multiple-tag and long range reading.
  • High performance and humanized design
  • High performance and humanized design
  • High performance and humanized design
High performance and humanized design
Features
  • Fixed/hop frequency optional
  • Support RSSI, antenna detection, online update
  • Support RSSI & Data filtering
  • Support Anti-collision algorithm
Get Quote
Highlights
Excellent extensibility, high output power, high sensitivity, low power consumption
Specifications
  • Physical
    Dimension 140.3mm×98.3mm×4.75mm
    RF Connector SMA-Female*16
    Communication Interface TTL UART serial
    Interface Cable 12P 1.0mm pitch FFC cable
  • Electrical
    Operating Voltage +4.5V~+5.5V
    Standby Current < 20mA
    Operating Current 5V power supply, 5
    1100mA @ +30dBm, working peak current is about 1500mA
  • RFID
    Chipset Impinj Indy R2000/E710
    Air Protocal ISO/IEC 18000-6B,ISO/IEC 18000-6C/EPC C1G2/ C2G2
    Frequency FCC 902MHz~928MHz,GB 920MHz~925MHz,ETSI 865MHz~868MHz,
    Japan Korea Malaysia Taiwan etc.
    Max Baud rate 460800bps
    Receive Sensitivity ≤-80dBm
    Output Power 0~33dBm(±1dB)adjustable
    Tag RSSI supported
    GPIO 2 Input , 2Output
  • Environmental
    Operating Temperature 25℃~﹢70℃
    Storage Temperature ﹣45℃~﹢85℃
    Operating humidity <95% (﹢25℃)
Applications
Intelligent Transportation
RFID Parking Access
Currently the vehicle management of parking yard mainly depends on manual recording, through manual transcribing the identification number at the front of the vehicle sequence number (the car in front of the bar code) registration identification.

Registered vehicles cannot be ensured in the field, although for different zoning, established the identity of cardboard. When we want to find out a specific vehicle, the process will be much time-consuming and cumbersome. Sometimes, some cars are not observed, the presence of area stopped for a long time and has not been sold. The stock situation cannot be timely to be controlled. For this situation, we need to implement automatic vehicle access registration, to achieve partition statistics, sales statistics, long stay and early-warning capabilities, making it imperative. Therefore, we need a new system to replace the existing system, which using more scientific and reasonable methods to reach vehicle monitoring.
View Details
Smart Retail
RFID Smart Refrigerator
With the rising cost of human resources and the increasing demand for the ultimate shopping experience, consumers are more comfortable with access to food and beverages anytime and anywhere. This has led to the emergence of smart new retail methods such as unmanned convenience stores, smart refrigerators, and smart vending machines. Among them, unmanned vending machines are one of the most common ones in daily life.

At same time, retail companies need to track all goods inventory status, improve operational efficiency, save labor cost and analysis customer's purchase trend to increase revenue. RFID technology can help them achieve it effortlessly. Nowadays, RFID technology is widely used in retail. The automatic retail fridge is built with RFID UHF hardware, so that retailers can track the goods status at any time. More importantly, smart RFID refrigerators enable buyer to finish purchase process alone and automatically.
View Details
Smart Retail
Smart Retail Store
Pain points in traditional retail stores
Operating aspects:
The operating costs of common convenience stores continue to rise
The cost of rent
convenience stores and merchants are more and more concerned with the capital. But the store resources are relatively scarce, and the pressure on the rising cost of rent will continue to exist in the future.
Labor costs
The decline of the working age workforce increases the labor cost. The increase of convenience store staff mobility and the increase of personnel costs and management costs.
The cost of water and electricity
The relative area is larger and the water power consumption is more.
Consumer aspects:
Purchasing daily necessities is inconvenient and far away.
There is no 24-hour store in the evening, and difficult to meet any emergency.
View Details
