HL3112
Three-phase AC Standard Source and Meter
It can be used as a standard meter or a test instrument;
supports offline or PC control; full range automatic gear
shifting; It's equipped with a 7-inch touch screen. It can
measure various complex waveforms in real, display
various electrical parameters in real time to calibrate
power stability, etc.
supports offline or PC control; full range automatic gear
shifting; It's equipped with a 7-inch touch screen. It can
measure various complex waveforms in real, display
various electrical parameters in real time to calibrate
power stability, etc.
/

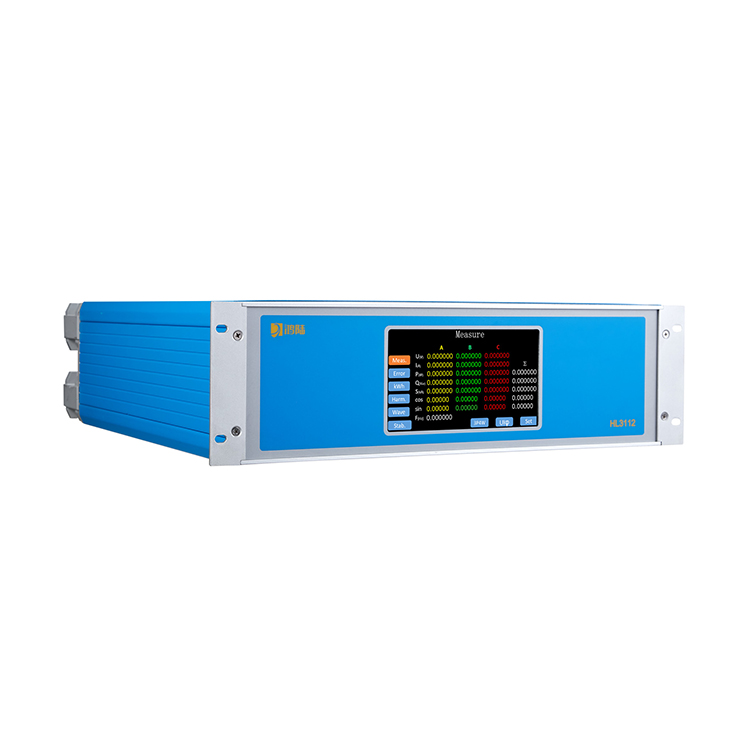

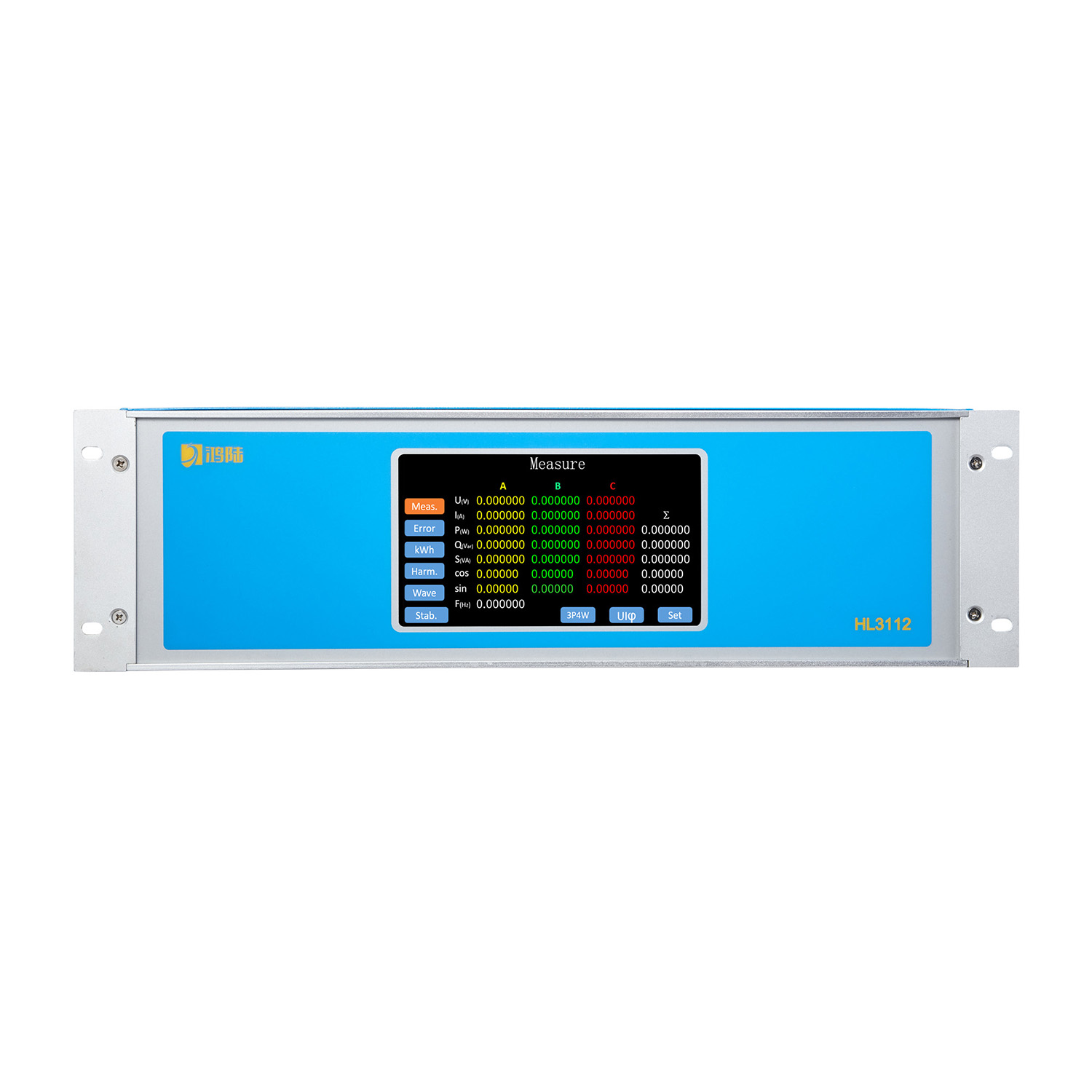

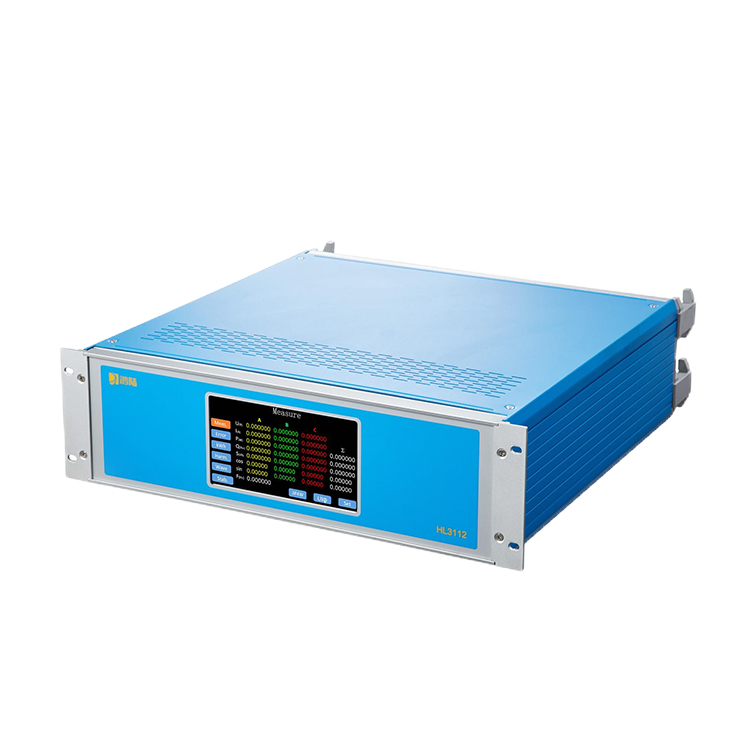

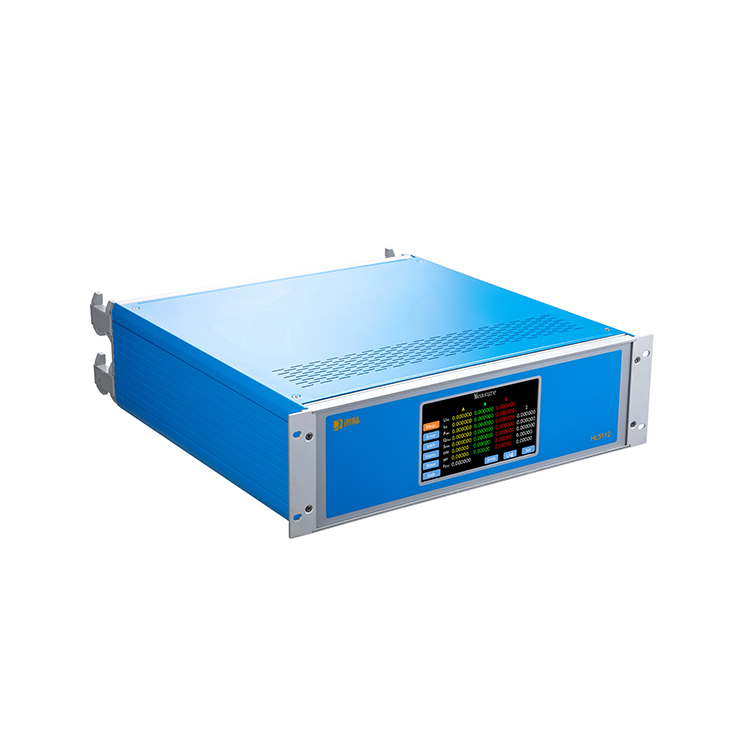

HL3112 Three-phase Standard Source and Meter
Features
-
Voltage Measurement Range: 1V≤U≤720V; RMS Value of Accuracy: ±0.02% -
Current Measurement Range: 0.3mA~120A; RMS Value of Accuracy: ±0.02%(10mA~100A); ±0.1%(5mA~10mA); ±0.5%(1mA~5mA) -
Power Supply Voltage Range:AC85V--265V, 50/60Hz；Equipped with a 7-inch touch screen -
Dimensions and Weight; 371mm * 330mm * 180mm; ＜10kg
Highlights
Main Advantages：
It can be used as a standard meter or a test instrument;
Supports offline or PC control;
Full range automatic gear shifting;
Equipped with a 7-inch touch screen;
Can measure various complex waveforms in real;
Display various electrical parameters in real time；
Can measure data such as power stability, etc.
Main Advantages：
It can be used as a standard meter or a test instrument;
Supports offline or PC control;
Full range automatic gear shifting;
Equipped with a 7-inch touch screen;
Can measure various complex waveforms in real;
Display various electrical parameters in real time；
Can measure data such as power stability, etc.
Specifications
-
Voltage Measurement
Measurement Range 1V ~720V RMS Value of Accuracy ±0.02% Harmonic RMS Value of Accuracy Harmonic frequency 2 -20 times: +0.2% reading + 0.05% range；Harmonic frequency 21 -63 times: +0.3% reading + 0.05% range -
Current Measurement
Measurement Range 0.3mA~120A RMS Value of Accuracy ±0.02%(10mA~100A)，±0.1%(5mA~10A)，±0.5%(1mA~5A)，
