HZ540

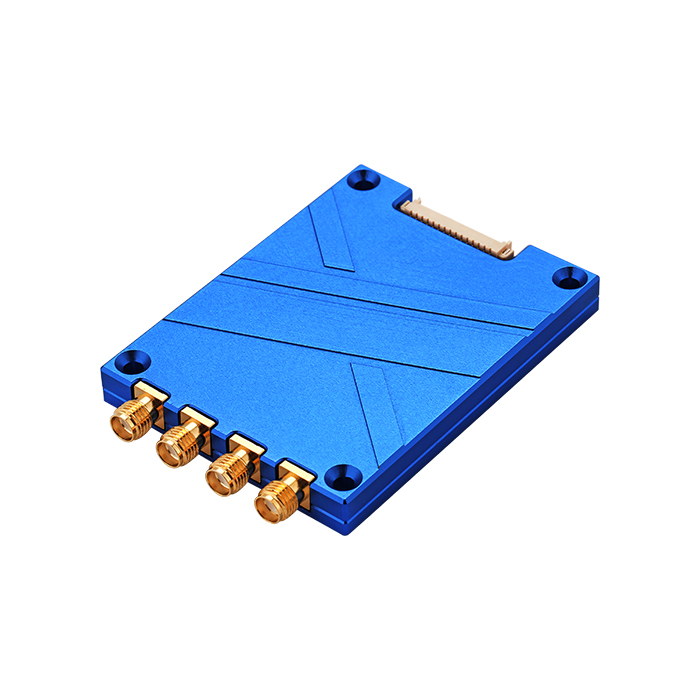

4-port UHF RFID Moduel

HZ540 module provides a wide power supply range (dc4.5v ~ 6V) and
configured GPIO interface (io1-io4, IO1 / io2 as input and IO3 / IO4 as output), which can provide users with more choices. Users can communicate with their own equipment through uart-ttl pin on the interface.
  • 4-port UHF RFID Module HZ540
  • 4-port UHF RFID Module HZ540
4-port UHF RFID Module HZ540
Features
  • Fixed/hop frequency optional
  • Support RSSI, antenna detection, online update
  • Support RSSI & Data filtering
  • Support Anti-collision algorithm
Get Quote
Highlights
Fast reading speed, high output power, high sensitivity, low power consumption
Specifications
  • Physical
    Dimension 78.55mm×53.5mm×7.95mm
    RF Connector SMA-Female*4
    Communication Interface TTL UART serial
    Interface Cable 12P 1.0mm pitch FFC cable
  • Electrical
    Operating Voltage +4.5V~+5.5V
    Standby Current < 20mA
    Operating Current 5V power supply, 5
    1100mA @ +30dBm, working peak current is about 1500mA
  • RFID
    Chipset Impinj Indy R2000
    Air Protocal ISO/IEC 18000-6B,ISO/IEC 18000-6C/EPC C1G2/ C2G2
    Frequency FCC 902MHz~928MHz,GB 920MHz~925MHz,ETSI 865MHz~868MHz,
    Japan Korea Malaysia Taiwan etc.
    Max Baud rate 460800bps
    Receive Sensitivity ≤-80dBm
    Output Power 0~33dBm(±1dB)adjustable
    Tag RSSI supported
    GPIO 2 Input , 2Output
  • Environmental
    Operating Temperature 25℃~﹢70℃
    Storage Temperature ﹣45℃~﹢85℃
    Operating humidity <95% (﹢25℃)
Applications
Smart Retail
Smart Retail Store
Pain points in traditional retail stores
Operating aspects:
The operating costs of common convenience stores continue to rise
The cost of rent
convenience stores and merchants are more and more concerned with the capital. But the store resources are relatively scarce, and the pressure on the rising cost of rent will continue to exist in the future.
Labor costs
The decline of the working age workforce increases the labor cost. The increase of convenience store staff mobility and the increase of personnel costs and management costs.
The cost of water and electricity
The relative area is larger and the water power consumption is more.
Consumer aspects:
Purchasing daily necessities is inconvenient and far away.
There is no 24-hour store in the evening, and difficult to meet any emergency.
View Details
Intelligent Transportation
Tool Management Solutions
Traditional tool management methods generally rely on non-automated, paper-based systems to record, track and manage; a few use barcodes to identify and manage assets; but the efficiency is extremely low, with the increase in the number of assets, extremely The earth has increased the burden of management personnel, a serious waste of human resources, and also increased the difficulty of tool management, often resulting in untimely data and high error rates. Often the inventory management is chaotic, and the inbound and outbound data is wrong. If it is left to exist on a large scale for a long time, it will bring great cost problems to the enterprise.

In terms of tool management application technology, traditional automatic identification technologies such as one-dimensional bar code/two-dimensional bar code have also been widely used in the management of item classification and labeling. However, the barcode technology itself relies on the visible light scanning reflection, the recognition rate is low, the barcode is easily damaged and stained, and the amount of stored information is small. Generally, it only identifies a certain type of product, which affects its wide application in logistics management.

Compared with barcode technology, RFID radio frequency identification technology is a typical representative of non-contact long-distance automatic identification technology. RFID technology has high recognition accuracy, reliable performance, large amount of stored information, and oil and sewage resistance, especially suitable for automatic identification requirements in harsh working environments. The use of RFID tags to replace barcodes and other identified goods can effectively complete the automatic management of assets, and realize the automatic collection, automatic processing and report output of asset information.
View Details
