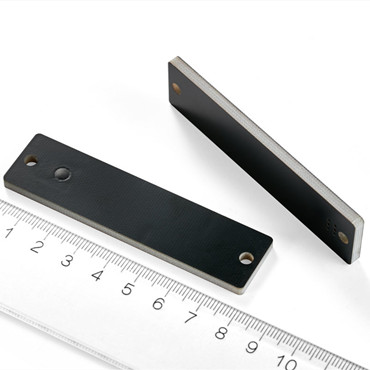

UHF RFID PCB Anti-Metal Tag for Asset Management CL7203E-8020

Anti-metal RFID sticker/label, suitable for metal surface, long reading distance & multiple reading:
Assets management, documents management,equipment management
  • UHF RFID PCB Anti-Metal Tag for Asset Management
UHF RFID PCB Anti-Metal Tag for Asset Management
Features
  • Working on metal surfaces
  • 128bit rewritable EPC memory
  • >5m long reading distance
  • IP65 rugged
Get Quote
Highlights
Specifications
  • Parameters
    Frequency 902MHz~928MHz; ETSI: 865-868MHz
    Protocol ISO/IEC 18000-6C EPC global GEN2 Class1
    Chip NXP Ucode8
    Reading range >5m (used Hopeland Fixed Reader)
    Writing range >1m
    Memory EPC 128bits
    Working mode Passive
    Data storage >10 years
    Rewriting >100000 times
    Polarization Liner polarization
  • Physical
    Size 80mm*20mm*3mm
    Housing Material PCB (FR4)
    Weight 20g/pcs
    Installation by screw or self adhesive
    Working temperature -25℃~85℃
    Storage temperature -30℃~110℃
    Relative humidity 5%~95% RH non-condensing
Applications
Warehousing & Logistics
Smart Warehousing
Modern warehouse storage is not only to complete the simple batch processing of goods in and out, but also to make clear database records of the types, quantities, production attributes, stacking positions and other information of goods in the warehouse. In order to obtain accurate product data and supply chain information at all stages of the logistics chain.

At present, the one-dimensional barcode/two-dimensional barcode identification technology has been widely used in the management of item classification and labeling. However, its barcode technology relies on visible light scanning reflection, has low recognition rate, is easy to break, contaminates, is sensitive to media such as water and oil, and stores a limited amount of information, which affects its application in large-scale logistics management.

RFID radio frequency identification technology is a typical representative of automatic identification technology. It has high recognition accuracy, reliable performance, large amount of stored information, resistance to oil and sewage washing, etc. It is especially suitable for automatic identification requirements in industrial environments. The use of RFID tags to replace barcodes and other identification products can effectively complete the automatic management of warehousing and realize automatic collection, automatic processing and information reporting of product information.
View Details
Intelligent Transportation
Tool Management Solutions
Traditional tool management methods generally rely on non-automated, paper-based systems to record, track and manage; a few use barcodes to identify and manage assets; but the efficiency is extremely low, with the increase in the number of assets, extremely The earth has increased the burden of management personnel, a serious waste of human resources, and also increased the difficulty of tool management, often resulting in untimely data and high error rates. Often the inventory management is chaotic, and the inbound and outbound data is wrong. If it is left to exist on a large scale for a long time, it will bring great cost problems to the enterprise.

In terms of tool management application technology, traditional automatic identification technologies such as one-dimensional bar code/two-dimensional bar code have also been widely used in the management of item classification and labeling. However, the barcode technology itself relies on the visible light scanning reflection, the recognition rate is low, the barcode is easily damaged and stained, and the amount of stored information is small. Generally, it only identifies a certain type of product, which affects its wide application in logistics management.

Compared with barcode technology, RFID radio frequency identification technology is a typical representative of non-contact long-distance automatic identification technology. RFID technology has high recognition accuracy, reliable performance, large amount of stored information, and oil and sewage resistance, especially suitable for automatic identification requirements in harsh working environments. The use of RFID tags to replace barcodes and other identified goods can effectively complete the automatic management of assets, and realize the automatic collection, automatic processing and report output of asset information.
View Details
