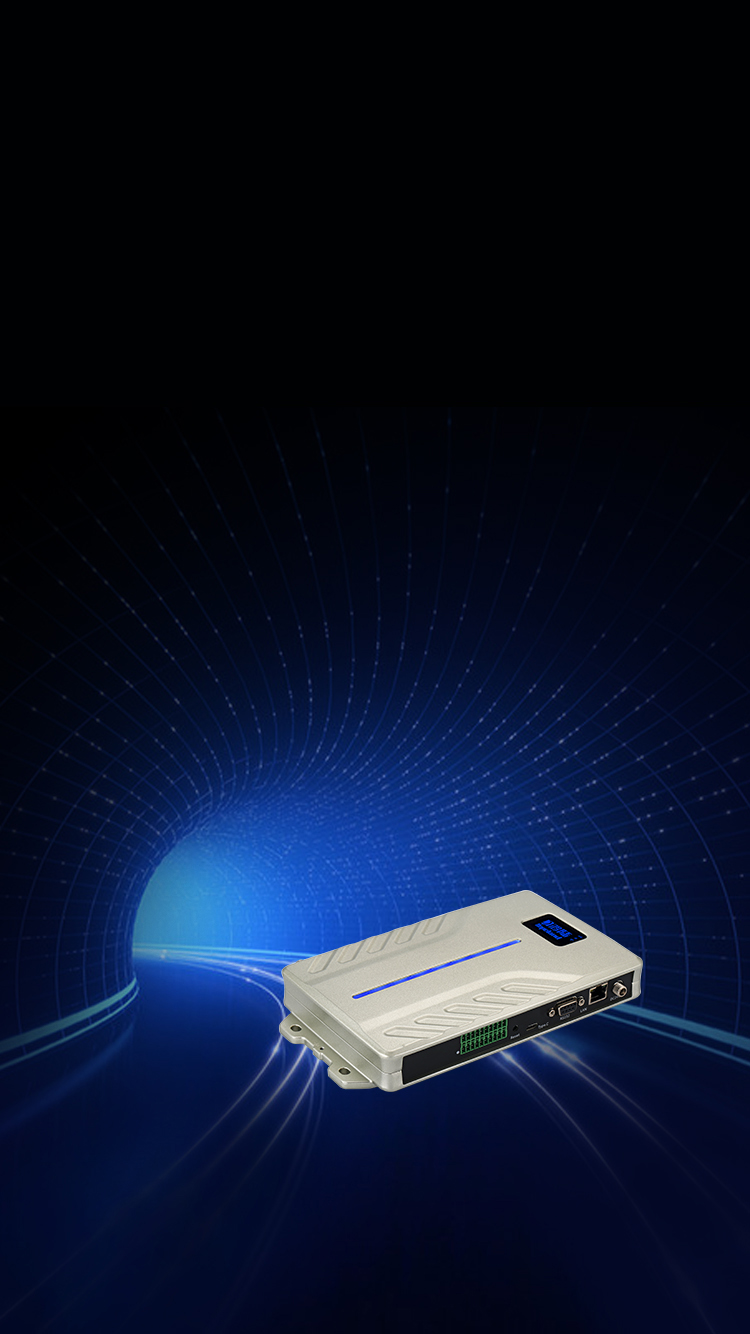

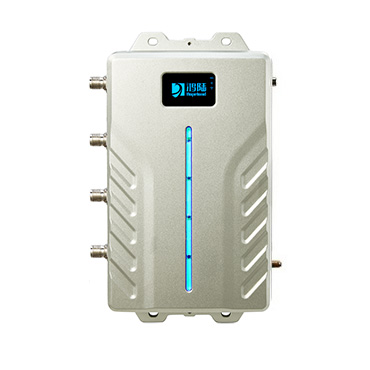

4 Ports UHF RFID Reader
Features
-
Adopts Impinj R2000/E710 chip
-
Processor AT91SAM9G25 clocked at 400MHz
-
Support remote configuration via web software
-
Built-in Linux system, data cache/white list supportable
-
RJ-45/RS-232/RS-485/USB/Wiegand ports supported
-
POE IEEE802.3bt (supports maximum power operation)
-
Extensible Bluetooth, WiFi wireless transmission function
-
Supports RSSI and tag data filtering
-
System
Processor ARM 9,400MHz Memory Flash 128MB,SDRAM 32MB Operation System Linux 2.6 Firmware upgrade Demo software/remote upgrade SDK Windows system– .Net / .Net core / C++ / Java SDK
Android system- Java
Linux system – Java SDK
Special function Automatic card reading/whitelisting
Breakpoint resuming/data filtering
Custom output PLC/Modbus compatible data format
Can support RF/EM temperature sensor chip -
Environment
Operating temperature -20℃~+70℃ Storage temperature -40℃~+85℃ Humidity 5%RH~95%RH (no condensation) -
RFID
Protocol ISO/IEC 18000-6B,6C/EPC C1Gen2、C2Gen2,GB/T 29768-2013, GJB 7377.1 Frequency FCC:902MHz~928MHz
ETSI:865MHz~868MHz
Output Power 0dBm~35dBm (±1dBm adjustable) Read Range 0m~20m (Related to transmit power, antenna type, tag type and application environment) Write Range 0m~10m (Related to transmit power, antenna type, tag type and application environment) Channel Bandwidth <200KHz Anti-collision Algorithm Fixed frequency/frequency hopping optional Operating mode Supports multi-tag/intensive read and write -
Physical
Dimension 241mm×132mm×36mm Weight 1.2Kg Material Die-cast Aluminum Status indication Power, Status, Antenna Port Indicators Power consumption 25W Communication Interface RJ45,RS232,RS485,USB Host&Client,Wiegand Optional WiFi, Bluetooth I/O interface 4 optocoupler input, 4 relay output Input Power DC 24V/2.5A(DC 9V~30V,60W) Antenna Port 4 RP-TNC antenna ports
Intelligent Transportation
Highway RFID Tolling
With the in-depth development of the world economy, the transportation infrastructure has been greatly improved. However, the traffic capacity of the road network is increasingly unable to meet the needs of traffic growth, and traffic congestion is becoming more and more serious, especially at high-speed toll stations. How to realize the effective command, coordinated control and management of various vehicles has become an important issue for traffic safety management department in different countries and regions.
RFID technology (radio frequency identification technology), as a revolutionary solution to security and management, can effectively solve the traffic issues. Hopeland provides a variety of RFID products, including UHF RFID readers, RFID Antennas, RFID vehicle tags, to promote the management of highway toll collections.
RFID technology (radio frequency identification technology), as a revolutionary solution to security and management, can effectively solve the traffic issues. Hopeland provides a variety of RFID products, including UHF RFID readers, RFID Antennas, RFID vehicle tags, to promote the management of highway toll collections.
View Details
Smart Retail
RFID Smart Refrigerator
With the rising cost of human resources and the increasing demand for the ultimate shopping experience, consumers are more comfortable with access to food and beverages anytime and anywhere. This has led to the emergence of smart new retail methods such as unmanned convenience stores, smart refrigerators, and smart vending machines. Among them, unmanned vending machines are one of the most common ones in daily life.
At same time, retail companies need to track all goods inventory status, improve operational efficiency, save labor cost and analysis customer's purchase trend to increase revenue. RFID technology can help them achieve it effortlessly. Nowadays, RFID technology is widely used in retail. The automatic retail fridge is built with RFID UHF hardware, so that retailers can track the goods status at any time. More importantly, smart RFID refrigerators enable buyer to finish purchase process alone and automatically.
At same time, retail companies need to track all goods inventory status, improve operational efficiency, save labor cost and analysis customer's purchase trend to increase revenue. RFID technology can help them achieve it effortlessly. Nowadays, RFID technology is widely used in retail. The automatic retail fridge is built with RFID UHF hardware, so that retailers can track the goods status at any time. More importantly, smart RFID refrigerators enable buyer to finish purchase process alone and automatically.
View Details
Industry 4.0
Textile Production
At present, bar code scanners are used to scan the labels outside the box one by one in the weaving and weaving yarn bins and winding in and out warehouses. The average daily scanning time is more than 28 hours and the workload is large, which wastes a lot of manpower and is not efficient.
The modern warehouse management system based on RFID technology can automatically complete the scanning of multiple labels at one time, save time and manpower, effectively achieve the accuracy of inventory, detect idle weft yarns in time, and improve the efficiency of management weft allocation. Cooperate with automatic assembly line, AGV, manipulator and other equipment, use RFID technology to intelligently perceive equipment and materials, realize production automation, real-time and visualize warehouse management, and use special mobile terminals to achieve fast and accurate inventory. The successful implementation of the project will provide strong support for the information process of the subsequent automated allocation warehouse.
The modern warehouse management system based on RFID technology can automatically complete the scanning of multiple labels at one time, save time and manpower, effectively achieve the accuracy of inventory, detect idle weft yarns in time, and improve the efficiency of management weft allocation. Cooperate with automatic assembly line, AGV, manipulator and other equipment, use RFID technology to intelligently perceive equipment and materials, realize production automation, real-time and visualize warehouse management, and use special mobile terminals to achieve fast and accurate inventory. The successful implementation of the project will provide strong support for the information process of the subsequent automated allocation warehouse.
View Details
-
Smart HZ100Parking System Integrated RFID ReaderHigh performance Integrated UHF RFID reader HZ100, updated from CL7206B5A, supporting ISO18000-6C protocol, long range RFID reading, fast identification, excellent multi-tag reading, strong Anti-collision, automatic reading, white list functions. Widely used fixed asset management, logistic, warehouse inventory, products tracking transshipment , e parking system vehicle management, production automation etc.Details
-
HH340IoT Fixed Android RFID ReaderHopeland HH340 is a 4-port Android-based fixed RFID reader integrated with Impinj R2000/E710 RFID chip. This long range UHF RFID reader supports RJ45, RS485, Wiegand, USB, Bluetooth, WIFI, 4G, etc. as well as supports MQTT to provide real-time and reliable messaging services. It also supports sending data directly to the database.Details
-
HY820UHF RFID handheld terminalImpinj E710 Supportable,UHF 25M Read Range;Industrial IP65 Rugged,1.5M Drop Test,Suitable For Different Harsh EnvironmentDetails
-
HZ5808-port UHF RFID ModuleHZ580 UHF RFID module provides a wide power supply range (dc4.5v ~ 6V). This RFID reader module is configured GPIO interface (IO1-IO4, IO1 / IO2 as input and IO3 / IO4 as output). Its frequency range is from 840MHz to 960MHz. Users can easily communicate with their own equipment through UART-TTL pin on the interface of HZ580 UHF RFID module.Details
