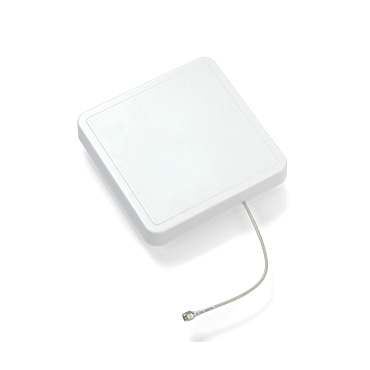

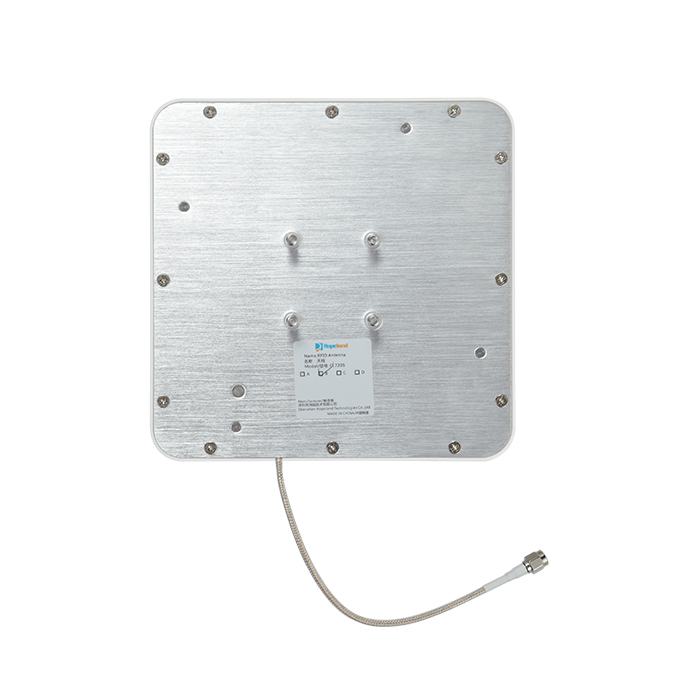

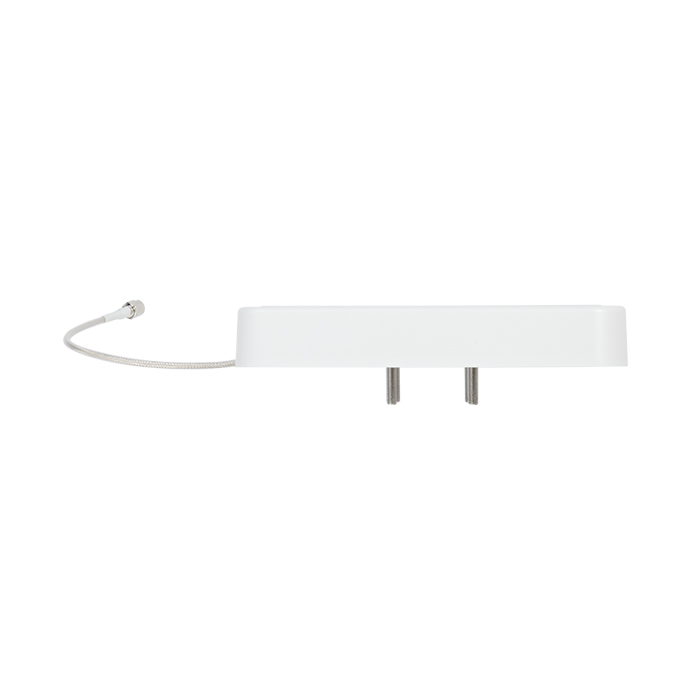

CL7205B

Circular Polarization
6dBi RFID UHF Antenna

Small Size ultra-high frequency RFID antenna. It adopts wide
frequency band (840~960MHz) design, has low standing wave ratio
and circular polarization characteristics, independent mold
opening, adopts engineering plastic shell, firm structure, high
protection level, long-term work Good stability, widely used in
forklift applications, vehicle management, warehouse management,
asset management and other fields.
  • Small Size Circular Polarization Antenna
  • Small Size Circular Polarization Antenna
  • Small Size Circular Polarization Antenna
Small Size Circular Polarization Antenna
Features
  • Wide operating frequency:840MHz~960MHz
  • Polarization: circular polarization
  • Gain:6dbi
  • Typical VSWR≤1.5:1
Get Quote
Highlights

Low profile with high gain,reading distance range up to 8m

Maximum efficiency and performance across the entire frequency band

Seamlessly compatible with different brand RFID readers

Widely used in parking, warehouse, forklift, production line, container yard, luggage, carousel, file cabinet, smart shelf, etc.

Specifications
  • Physical Specifications
    Weight: 1.32kg
    Dimensions: 164mm*164mm*24.6mm
    Packge size: 259mm*182mm*81mm
    Connector type / position: SMA male on the side
    Material: Aluminum +ABS
    Operating Temperature: -20 - +70°C
    Storage Temperature: -40 - +80°C
  • Electrical Specifications
    Frequency Range: 840MHz~960MHz
    Typical VSWR: ≤1.5:1
    Gain: 6dbi
    H Beamwidth: 70°
    E Beamwidth: 70°
    Polarization: Circular
    Nominal Impedance: 50 Ω
Applications
Intelligent Transportation
Highway RFID Tolling
With the in-depth development of the world economy, the transportation infrastructure has been greatly improved. However, the traffic capacity of the road network is increasingly unable to meet the needs of traffic growth, and traffic congestion is becoming more and more serious, especially at high-speed toll stations. How to realize the effective command, coordinated control and management of various vehicles has become an important issue for traffic safety management department in different countries and regions.
RFID technology (radio frequency identification technology), as a revolutionary solution to security and management, can effectively solve the traffic issues. Hopeland provides a variety of RFID products, including UHF RFID readers, RFID Antennas, RFID vehicle tags, to promote the management of highway toll collections.
View Details
Warehousing & Logistics
Smart Warehousing
Modern warehouse storage is not only to complete the simple batch processing of goods in and out, but also to make clear database records of the types, quantities, production attributes, stacking positions and other information of goods in the warehouse. In order to obtain accurate product data and supply chain information at all stages of the logistics chain.

At present, the one-dimensional barcode/two-dimensional barcode identification technology has been widely used in the management of item classification and labeling. However, its barcode technology relies on visible light scanning reflection, has low recognition rate, is easy to break, contaminates, is sensitive to media such as water and oil, and stores a limited amount of information, which affects its application in large-scale logistics management.

RFID radio frequency identification technology is a typical representative of automatic identification technology. It has high recognition accuracy, reliable performance, large amount of stored information, resistance to oil and sewage washing, etc. It is especially suitable for automatic identification requirements in industrial environments. The use of RFID tags to replace barcodes and other identification products can effectively complete the automatic management of warehousing and realize automatic collection, automatic processing and information reporting of product information.
View Details
Smart Retail
Smart Retail Store
Pain points in traditional retail stores
Operating aspects:
The operating costs of common convenience stores continue to rise
The cost of rent
convenience stores and merchants are more and more concerned with the capital. But the store resources are relatively scarce, and the pressure on the rising cost of rent will continue to exist in the future.
Labor costs
The decline of the working age workforce increases the labor cost. The increase of convenience store staff mobility and the increase of personnel costs and management costs.
The cost of water and electricity
The relative area is larger and the water power consumption is more.
Consumer aspects:
Purchasing daily necessities is inconvenient and far away.
There is no 24-hour store in the evening, and difficult to meet any emergency.
View Details
