Wing Series HY820

Long Reading Handheld Android RFID Reader

Built with 1D Barcode, QR code, Camera, GPS, Hopeland Android RFID reader can bring a new level of efficiency and accuracy to inventory management, order fulfillment, and asset tracking. It also has a 10000mAh battery supporting quick-charge and runs with Impinj Indy R2000/ E710 RAIN RFID upgradable, offering you superior RFID read performance.
  • Wing820 UHF RFID Handheld Reader
  • Wing820 UHF RFID Handheld Reader
  • Wing820 UHF RFID Handheld Reader
  • Wing820 UHF RFID Handheld Reader
  • Wing820 UHF RFID Handheld Reader

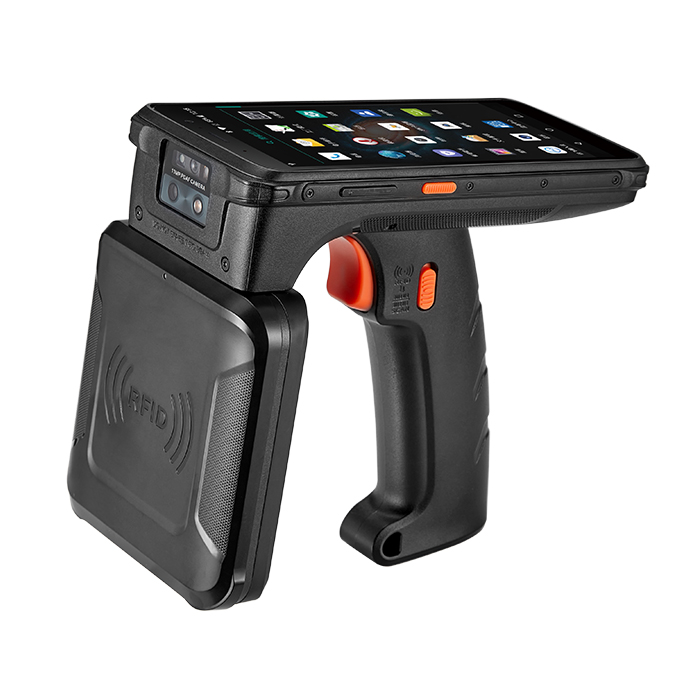

Wing820 UHF RFID Handheld Reader
Features
  • Impinj RAIN RFID E710 Chip (Indy R2000 optional)
  • Android 9.0, MTK MT6762 Octa Core 2.0GHz
  • Humanized Design, light weight
  • Hight protection IP65 level
  • Long Read Distance > 15M
  • Different communication interfaces (WiFi, Bluetooth, 4G, USB)
  • Support Tag search & data filtering
  • Small Inventory App for direct use Free demo, sample code, SDK
Get Quote
Highlights




Hopeland UHF RFID reader HY820 is one of the best performing handheld terminals on the market. Integrated the functions of Wi-Fi, Bluetooth, 4G, GPS/APGS/Beidou, our handheld RFID reader can achieve more flexible and more accurate data collection. This mobile RFID reader can be easily used in various industries like highway toll station, retail, logistics, etc.


*Excellent: Impinj E710 chip with UHF more than 15m reading distance.

* Powerful: Android 9.0 OS, MTK MT6765 Octa-core 2.3GHz

* Humanist: hand grip ergonomic design, light weight

* Industrial IP65 rugged, 1.2M Drop to concrete, applying to kinds of severe environment





Hopeland UHF RFID reader HY820 is one of the best performing handheld terminals on the market. Integrated the functions of Wi-Fi, Bluetooth, 4G, GPS/APGS/Beidou, our handheld RFID reader can achieve more flexible and more accurate data collection. This mobile RFID reader can be easily used in various industries like highway toll station, retail, logistics, etc.


*Excellent: Impinj E710 chip with UHF more than 15m reading distance.

* Powerful: Android 9.0 OS, MTK MT6765 Octa-core 2.3GHz

* Humanist: hand grip ergonomic design, light weight

* Industrial IP65 rugged, 1.2M Drop to concrete, applying to kinds of severe environment


Specifications
  • Performance Characteristics
    Processor MTK MT6762 Octa-core(4×A53 2.0Ghz, 4×A53 1.5Ghz)
    OS Android 9.0
    Memory 64 GB ROM+4 GB RAM
    Display 5.46” HD+ 720×1440
    Standard I/O Port Type-C USB
    Expansion Slot 1 Micro SD Slot, 2 SIM Slots
    Notification Indicator LED, Speaker
  • Network Characteristics
    WIFI 802.11a/ac/b/g/n (2.4G+5G)
    WWAN GSM(B2/B3/B5/B8) / CDMA/CDMA-EVDO: BC0
    WCDMA: B1/B8 / TD-SCDMA: B34/B39
    TDD-LTE: B34/B38/B39/B40/B41 / FDD-LTE: B1/B3/B8
    Bluetooth 5.0
    USB Type C
  • UHF RFID
    Protocol ISO/IEC 18000-6B, ISO/IEC18000-6C / EPC C1G2 / C2V2
    Reading Distance 0~ ≥15m(According to Tag & Environment)
    Antenna Circular 4dBi
    RF output 0-33dBm adjustable
    Frequency USA:902-928MHz (FCC part 15)
    EU: 865-868MHz (ETSI EN 302 208)
    CHN:920-925MHz(CMII)
    Other frequency & standard optional
  • Data Capture & Data Processing Device
    Camera Rear: 13.0MP(PDAF)+Flash led
    Front: 5.0MP(FF)
    Barcode Engine 2D Imager Barcode Scanner
    (Support 1D&2D code scan)
    Positioning GPS/AGPS/Glonass/BeiDou, with internal Antenna
  • Environmental Parameters
    Storage Temp. 40℃~+85℃
    Operating Temp. -20℃~+70℃
    Humidity 5% RH~95%RH (non-condensing)
    Drop Spec. 1.2M Drop to concrete
    Dust & Water Proof IP65
  • Physical Characteristics
    Dimensions Full set: 164mm(L)×99mm(W)×148.5mm(H)
    Weight N.W.: 630g
    G.W.:1Kg
    Battery Lithium Polymer 10,000mAh(Rechargeable)
    Accessories Power Adaptor: Input AC100V ~ 240V / Output DC 9V 2A
Applications
Intelligent Transportation
Highway RFID Tolling
With the in-depth development of the world economy, the transportation infrastructure has been greatly improved. However, the traffic capacity of the road network is increasingly unable to meet the needs of traffic growth, and traffic congestion is becoming more and more serious, especially at high-speed toll stations. How to realize the effective command, coordinated control and management of various vehicles has become an important issue for traffic safety management department in different countries and regions.
RFID technology (radio frequency identification technology), as a revolutionary solution to security and management, can effectively solve the traffic issues. Hopeland provides a variety of RFID products, including UHF RFID readers, RFID Antennas, RFID vehicle tags, to promote the management of highway toll collections.
View Details
Warehousing & Logistics
Smart Warehousing
Modern warehouse storage is not only to complete the simple batch processing of goods in and out, but also to make clear database records of the types, quantities, production attributes, stacking positions and other information of goods in the warehouse. In order to obtain accurate product data and supply chain information at all stages of the logistics chain.

At present, the one-dimensional barcode/two-dimensional barcode identification technology has been widely used in the management of item classification and labeling. However, its barcode technology relies on visible light scanning reflection, has low recognition rate, is easy to break, contaminates, is sensitive to media such as water and oil, and stores a limited amount of information, which affects its application in large-scale logistics management.

RFID radio frequency identification technology is a typical representative of automatic identification technology. It has high recognition accuracy, reliable performance, large amount of stored information, resistance to oil and sewage washing, etc. It is especially suitable for automatic identification requirements in industrial environments. The use of RFID tags to replace barcodes and other identification products can effectively complete the automatic management of warehousing and realize automatic collection, automatic processing and information reporting of product information.
View Details
Smart Retail
Smart Retail Store
Pain points in traditional retail stores
Operating aspects:
The operating costs of common convenience stores continue to rise
The cost of rent
convenience stores and merchants are more and more concerned with the capital. But the store resources are relatively scarce, and the pressure on the rising cost of rent will continue to exist in the future.
Labor costs
The decline of the working age workforce increases the labor cost. The increase of convenience store staff mobility and the increase of personnel costs and management costs.
The cost of water and electricity
The relative area is larger and the water power consumption is more.
Consumer aspects:
Purchasing daily necessities is inconvenient and far away.
There is no 24-hour store in the evening, and difficult to meet any emergency.
View Details
