HY830

New Long Reading Handheld UHF RFID Reader

Powerful: Android 13 OS, MTK MT6765 Octa-core
UHF RFID: Impinj E710 RFID chip
Dust & Water Proof: IP67 Rugged
Battery: 30.8Wh detachable battery for kinds of application
WIfi,Bluetooth 5.0,GPS/BeiDou/Galileo/GLONASS/AGPS, etc.
  • New UHF RFID Handheld Reader Wing Series HY830
  • New UHF RFID Handheld Reader Wing Series HY830
  • New UHF RFID Handheld Reader Wing Series HY830
  • New UHF RFID Handheld Reader Wing Series HY830
  • New UHF RFID Handheld Reader Wing Series HY830

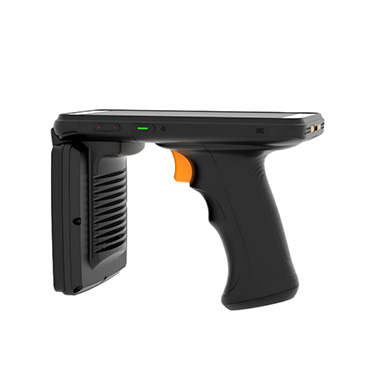

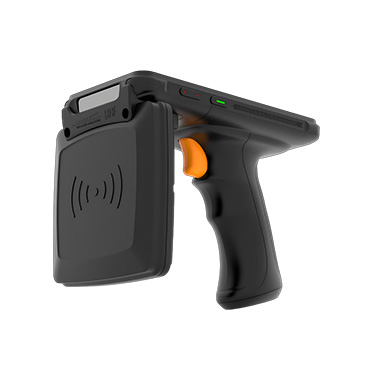

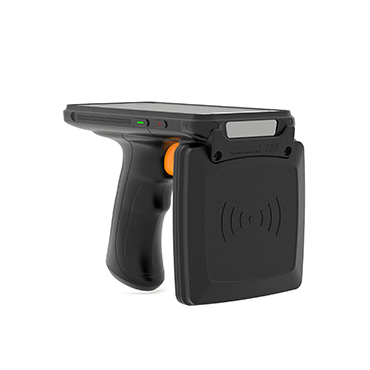

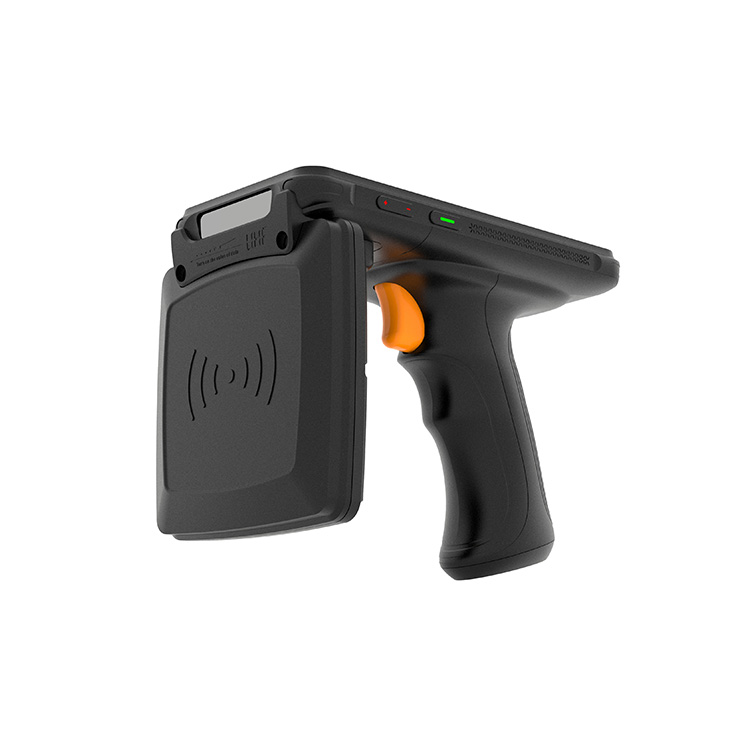

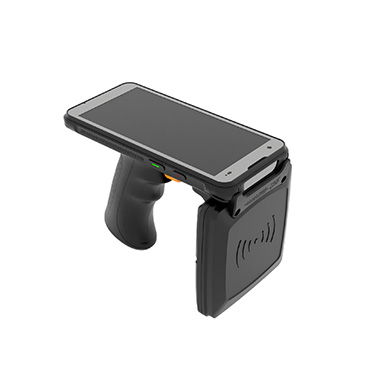

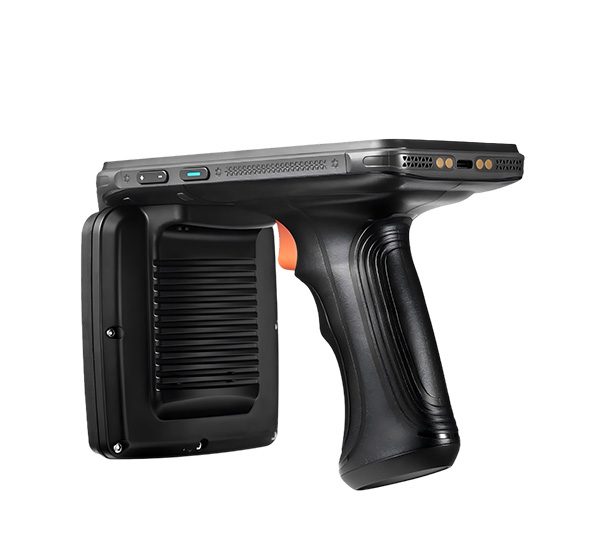

New UHF RFID Handheld Reader Wing Series HY830
Features
  • Impinj E710 Chip
  • Industrial IP67 rugged
  • Android 13 OS, MTK MT6765 Octa-core 2.0GHz
  • More Than 20m Reading Distance
  • Protocol:ISO/IEC18000-6C / EPC C1G2
  • Display:6” IPS 2160×1080P, support multi-touch
Get Quote
Highlights


Main Advantages:

High-Performance Octa-Core CPU – 2.0GHz 8-core processor for smooth and efficient performance.

6-inch IPS HD Display – Crisp 2160×1080 resolution for vibrant visuals.

Long-Range RFID Recognition – Advanced RFID technology with a detection range of up to 20 meters in open outdoor environments.

Removable 8000mAh High-Capacity Battery – Extended battery life for uninterrupted operation.


Main Advantages:

High-Performance Octa-Core CPU – 2.0GHz 8-core processor for smooth and efficient performance.

6-inch IPS HD Display – Crisp 2160×1080 resolution for vibrant visuals.

Long-Range RFID Recognition – Advanced RFID technology with a detection range of up to 20 meters in open outdoor environments.

Removable 8000mAh High-Capacity Battery – Extended battery life for uninterrupted operation.


Specifications
  • Performance Characteristics
    CPU MTK6765 Octa-core 2.0GHz
    Operating System Android 13
    Memory 64 GB ROM+4 GB RAM
    Display 6” IPS 2160×1080P, support multi-touch
  • UHF RFID
    Chip Impinj E710
    Protocol ISO/IEC18000-6C / EPC C1G2
    RF Output 0-33dBm adjustable
    Antenna Circular 4dBi
    Reading Distance 0~ 20m(According to Tag & Environment)
    Frequency USA:902-928MHz (FCC part 15)
    EU: 865-868MHz (ETSI EN 302 208)
    CHN:920-925MHz(CMII) etc.
  • Network Characteristics
    WIFI 802.11a/b/g/n/ac (2.4G+5G)
    WWAN 2G: GSM B2/B3/B5/B8
    3G: WCDMA B1/B2/B5/B8,
    TD-SCDMA B34/B39,
    CDMA1x/CDMA2000 BC0/BC1
    4G: FDD-LTE B1/B3/B5/B7/B8,
    TDD-LTE B38/B39/B40/B41
    Bluetooth 5.0
    Navigation GPS/BeiDou/Galileo/GLONASS/AGPS
  • Physical Characteristics
    Dimensions(L x W x H) 171.5 mm *101 mm *131.5 mm(Includes Handle and RFID)
    Weight About 650g
    Standard I/O Port Type-C USB x 1, OTG, USB2.0
    Notification Indicator LED, Speaker, Vibration
    Battery 30.8Wh detachable polymer lithium battery
    Drop Spec. 1.2M Drop to concrete
    Dust & Water Proof IP67
Applications
Intelligent Transportation
Highway RFID Tolling
With the in-depth development of the world economy, the transportation infrastructure has been greatly improved. However, the traffic capacity of the road network is increasingly unable to meet the needs of traffic growth, and traffic congestion is becoming more and more serious, especially at high-speed toll stations. How to realize the effective command, coordinated control and management of various vehicles has become an important issue for traffic safety management department in different countries and regions.
RFID technology (radio frequency identification technology), as a revolutionary solution to security and management, can effectively solve the traffic issues. Hopeland provides a variety of RFID products, including UHF RFID readers, RFID Antennas, RFID vehicle tags, to promote the management of highway toll collections.
View Details
Warehousing & Logistics
Smart Warehousing
Modern warehouse storage is not only to complete the simple batch processing of goods in and out, but also to make clear database records of the types, quantities, production attributes, stacking positions and other information of goods in the warehouse. In order to obtain accurate product data and supply chain information at all stages of the logistics chain.

At present, the one-dimensional barcode/two-dimensional barcode identification technology has been widely used in the management of item classification and labeling. However, its barcode technology relies on visible light scanning reflection, has low recognition rate, is easy to break, contaminates, is sensitive to media such as water and oil, and stores a limited amount of information, which affects its application in large-scale logistics management.

RFID radio frequency identification technology is a typical representative of automatic identification technology. It has high recognition accuracy, reliable performance, large amount of stored information, resistance to oil and sewage washing, etc. It is especially suitable for automatic identification requirements in industrial environments. The use of RFID tags to replace barcodes and other identification products can effectively complete the automatic management of warehousing and realize automatic collection, automatic processing and information reporting of product information.
View Details
