AC current limit: 0.1A, 0.2A, 0.5A, 1A, 2A, 5A, 10A, 25A -
AC voltag limit:57.7V, 100V, 220V, 380V, 700V -
Adjustment Range:(0~110)%RG -
Phase Adjustment Range:00～359.990 -
Power Supply:AC220V±10 -
Working Environment

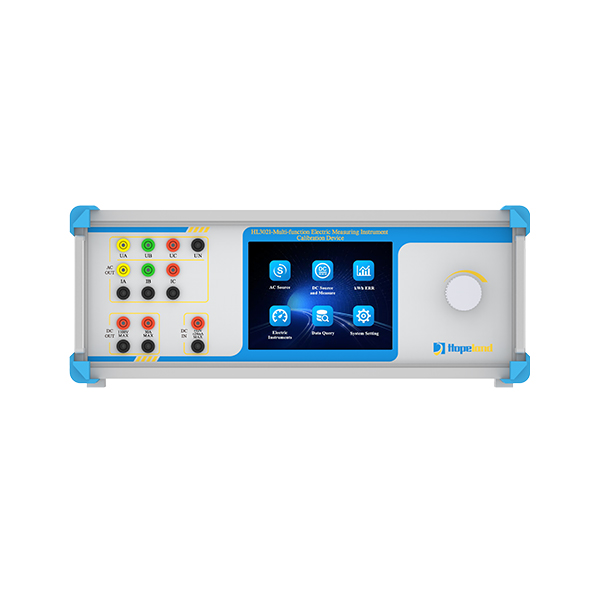

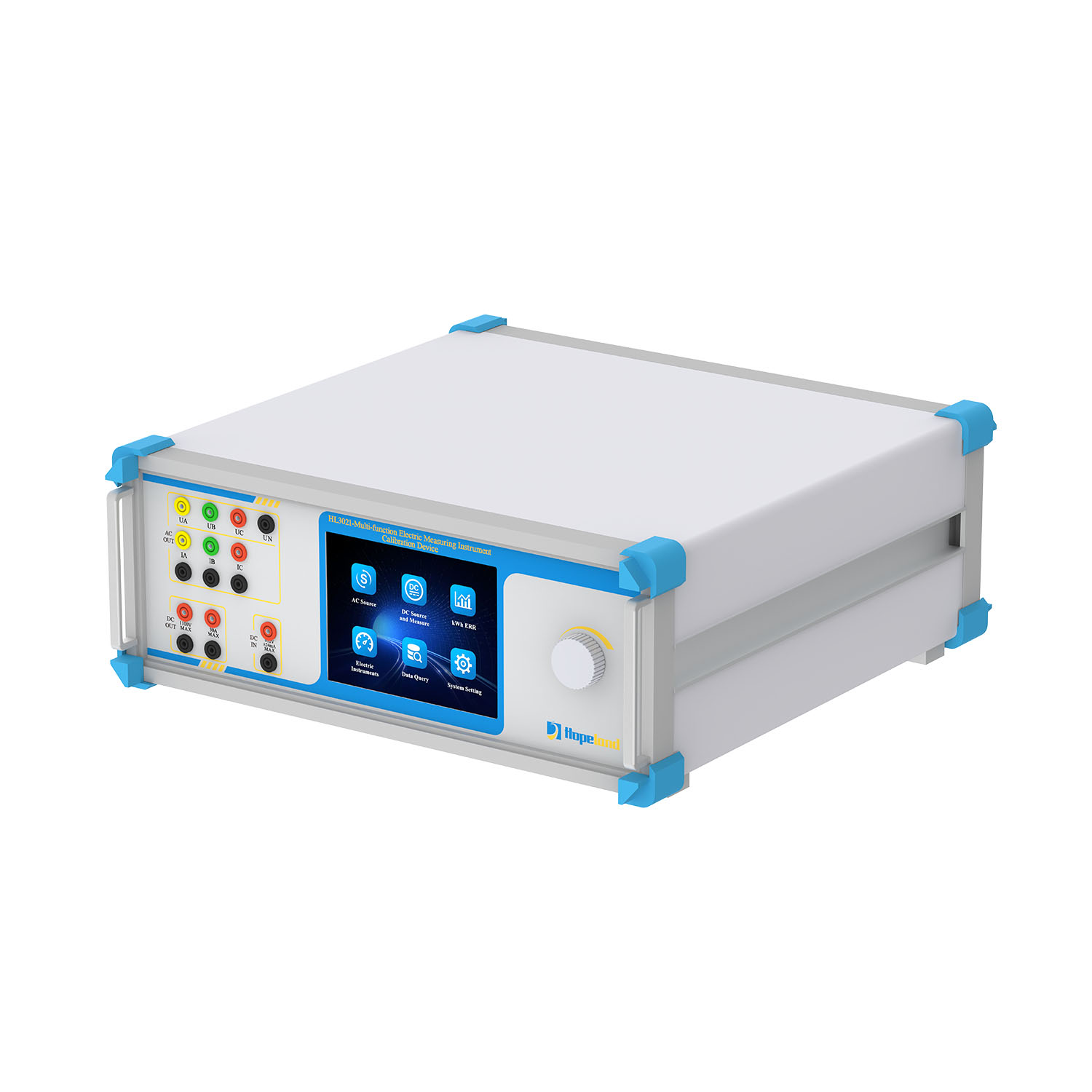

Main Functions and Features
- Indicator meters:
AC voltmeter, AC ammeter, AC active power meter, reactive power meter, phase meter, power factor meter, frequency meter, synchronization meter, power meter, DC voltmeter, DC ammeter, DC power meter, clamp meter*, etc.
- Power transmitter:
AC voltage and current transmitter, three-phase active power and reactive power transmitter (four-wire and three-wire), phase transmitter, three-phase power factor transmitter, frequency transmitter, DC voltage and current transmitter, DC power transmitter, three-phase four-wire and three-phase three-wire active and reactive power transmitter, and so on.
- DC voltage maximum output 1100 V, AC voltage maximum output 770V; the maximum output of AC and DC current is 30A, and the frequency of AC output is 45Hz～65Hz.
- Harmonic output 2～31 times, content ≤40%.
- AC output distortion is better than 0.2%, DC output ripple content is better than 0.2%.
- Strong load capacity, under full load conditions to ensure stable and accurate value, can cover the analog meter calibration.
- Output has a variety of value adjustment methods, such as "fixed-point output, rotary encoder, step proportional" and so on.
- Equipped with a large-size LCD touch screen, which is intuitive to display the measurement value and very convenient to operate.
- With RS-232 interface. Through the upper computer software (option), computer control of the device can be automatic or manual inspection, and processing and management of the results.
- With a large-capacity non-volatile memory, which can store the raw data of the inspected meter's inspection for review and upload.
- Can carry out meter calibration according to the meter testing load point or self-selected point, etc.
Main Functions and Features
- Indicator meters:
AC voltmeter, AC ammeter, AC active power meter, reactive power meter, phase meter, power factor meter, frequency meter, synchronization meter, power meter, DC voltmeter, DC ammeter, DC power meter, clamp meter*, etc.
- Power transmitter:
AC voltage and current transmitter, three-phase active power and reactive power transmitter (four-wire and three-wire), phase transmitter, three-phase power factor transmitter, frequency transmitter, DC voltage and current transmitter, DC power transmitter, three-phase four-wire and three-phase three-wire active and reactive power transmitter, and so on.
- DC voltage maximum output 1100 V, AC voltage maximum output 770V; the maximum output of AC and DC current is 30A, and the frequency of AC output is 45Hz～65Hz.
- Harmonic output 2～31 times, content ≤40%.
- AC output distortion is better than 0.2%, DC output ripple content is better than 0.2%.
- Strong load capacity, under full load conditions to ensure stable and accurate value, can cover the analog meter calibration.
- Output has a variety of value adjustment methods, such as "fixed-point output, rotary encoder, step proportional" and so on.
- Equipped with a large-size LCD touch screen, which is intuitive to display the measurement value and very convenient to operate.
- With RS-232 interface. Through the upper computer software (option), computer control of the device can be automatic or manual inspection, and processing and management of the results.
- With a large-capacity non-volatile memory, which can store the raw data of the inspected meter's inspection for review and upload.
- Can carry out meter calibration according to the meter testing load point or self-selected point, etc.
-
Technical Parameters
AC Voltage Output 0 ~ 700V （0.05%RD, 57.7≤U≤700V)） AC Current Output 0~25A （0.05% RD, 10mA≤I≤25A) DC Voltage Output 0~1000V （0.05%RD, 75mV≤U≤1000V)） Transmitter Secondary Measurement 0~±10V / 0~±20mA （±0.01%RG） -
Other Technical Indicators
Stability 0.01%/min Size 520mm*530mm*205mm Weight ≤25Kg
