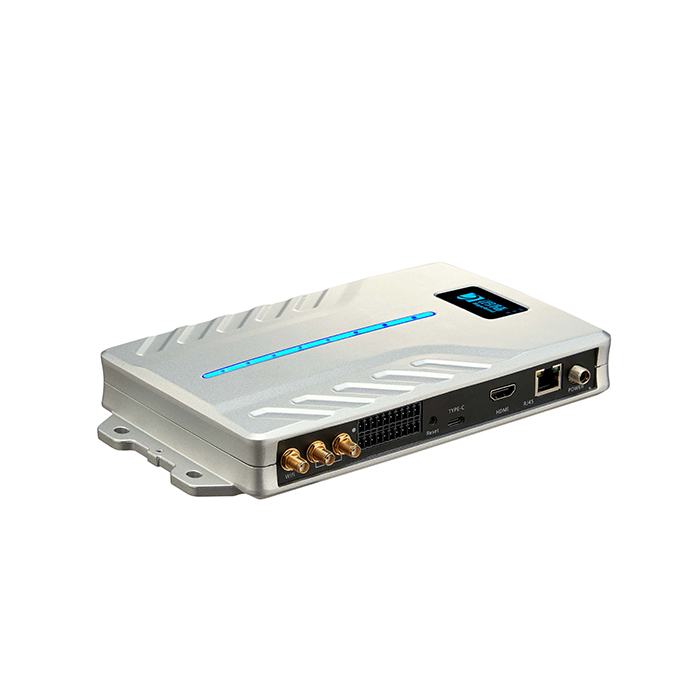

IoT Android Smart RFID Reader
Features
-
Impinj RAIN RFID E710 chip ( Indy R2000 optional)
-
Open development environment based on Android OS
-
Supports MQTT to send data to cloud servers in real-time
-
Supports HTTP POST communication to send tag data directly to a web URL
-
Supports sending data to database directly
-
RJ45, RS485, Wiegand, USB, Bluetooth, WiFi, 4G
-
Support antenna port detection, online updates
-
Supports RSSI and tag data filtering
-
System
Processor MT6765, Octa Core 2.3Ghz Memory ROM 64GB; RAM 4GB Operation System Android 9.0 (open for developers) Firmware upgrade Demo software/Web page API Windows system– .Net / .Net core / C++ / Java SDK
Android system- Java
Linux system – Java, SDK -
Environment
Operating temperature -20℃~+70℃ Storage temperature -40℃~+85℃ Humidity 5%RH~95%RH(no condensation) Protection level IP5X, if outdoor use, support to add case -
Physical

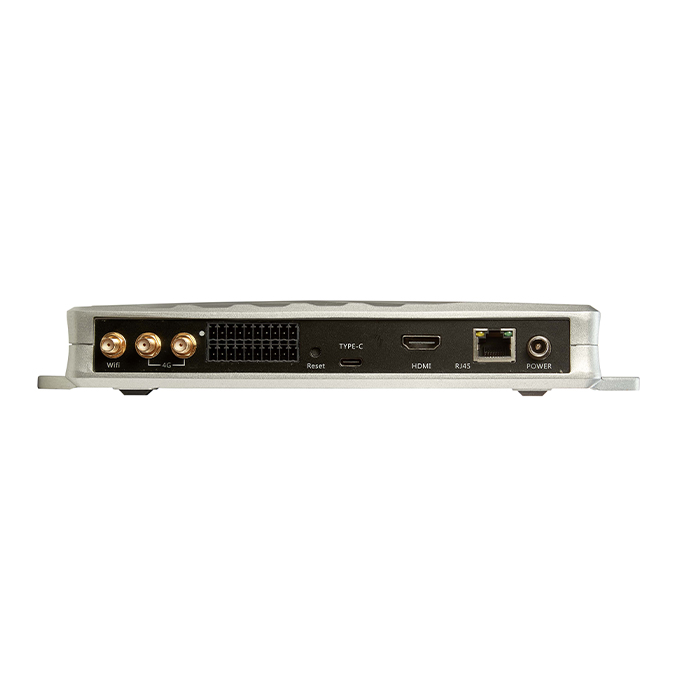

Dimension 241mm×132mm×36mm Weight 1.0Kg Material Die-cast Aluminum Status indication Power, working status, antenna port, WiFi, 4G, Bluetooth Power consumption 25W Communication RJ45, RS485, OTG, Wiegand
WiFi: 802.11 a/b/g/n/ac
4G: LTE-FDD (CAT-7)/LTE-TDD (CAT-7)/WCDMA/TD-SCDMA/
EVDO/CDMA/GSM
Bluetooth: BT v2.1+EDR, 3.0+HS, v4.1+HSI/O ports 4 optocoupler input (DC 0~4V), 4 relay output Power Supply DC 24V/2.5A (DC 9V~30V,60W) or POE(IEEE 802.3 af/at/bt) Display HDMI, 720P/1080P Antenna port 4 RP-TNC -
RFID
Protocol ISO/IEC 18000-6B,6C/EPC C1Gen2、C2Gen2,GB/T 29768-2013, GJB 7377.1 Frequency FCC:902MHz~928MHz
ETSI:865MHz~868MHz
CN / EAC / ANATEL / TELEC / BIS / NBTC / KC and so on standards optionalOuput Power 0dBm~35dBm (±1dBm)
(4 antennas 0-12dbi optional)Channel Occupied Bandwidth <200KHz Anti-collision Supports multi-tag/dense reading Operating mode Fixed frequency/frequency hopping optional
Intelligent Transportation
Highway RFID Tolling
With the in-depth development of the world economy, the transportation infrastructure has been greatly improved. However, the traffic capacity of the road network is increasingly unable to meet the needs of traffic growth, and traffic congestion is becoming more and more serious, especially at high-speed toll stations. How to realize the effective command, coordinated control and management of various vehicles has become an important issue for traffic safety management department in different countries and regions.

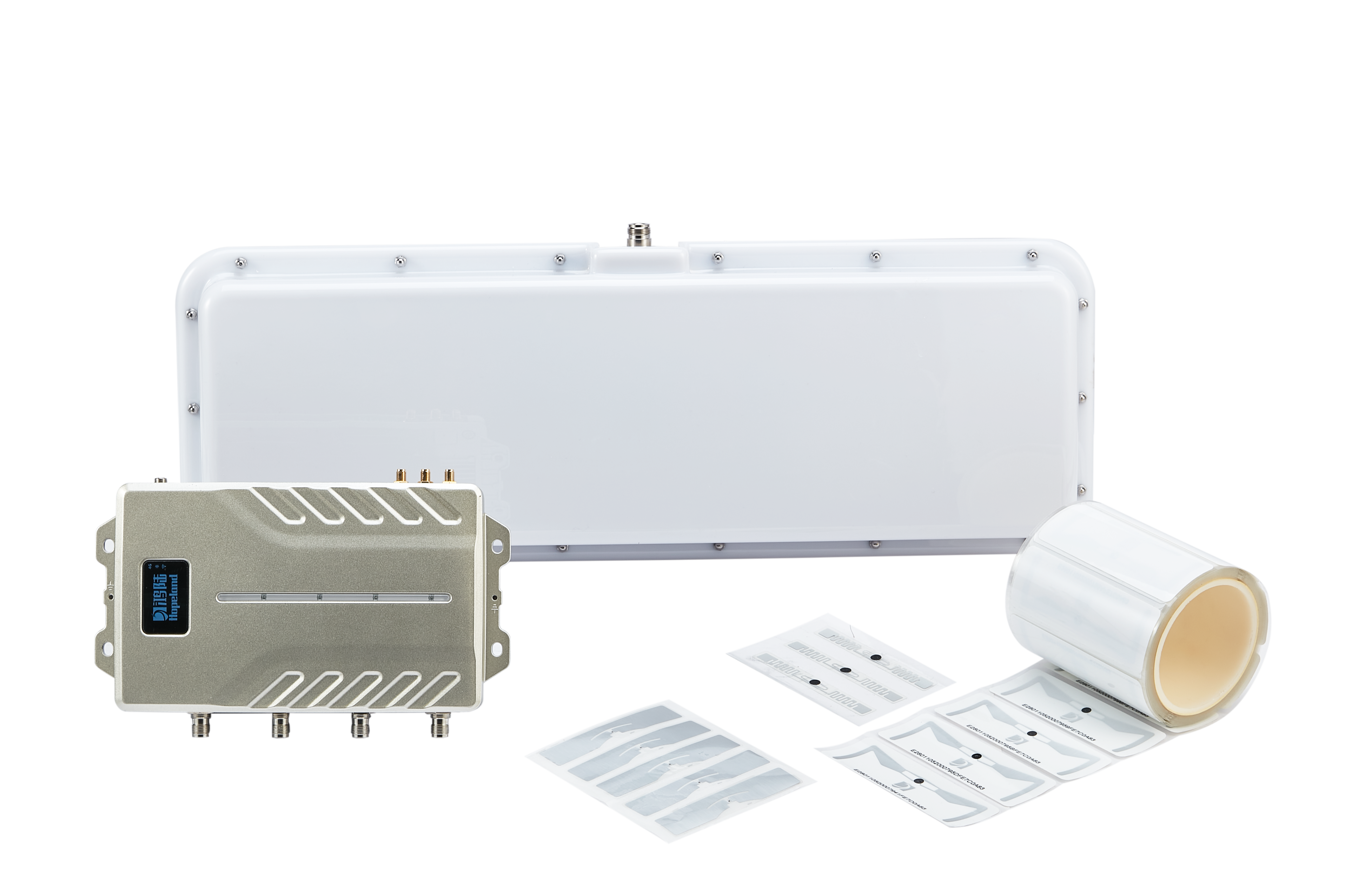

RFID technology (radio frequency identification technology), as a revolutionary solution to security and management, can effectively solve the traffic issues. Hopeland provides a variety of RFID products, including UHF RFID readers, RFID Antennas, RFID vehicle tags, to promote the management of highway toll collections.
RFID technology (radio frequency identification technology), as a revolutionary solution to security and management, can effectively solve the traffic issues. Hopeland provides a variety of RFID products, including UHF RFID readers, RFID Antennas, RFID vehicle tags, to promote the management of highway toll collections.
View Details
Warehousing & Logistics
Smart Warehousing
Modern warehouse storage is not only to complete the simple batch processing of goods in and out, but also to make clear database records of the types, quantities, production attributes, stacking positions and other information of goods in the warehouse. In order to obtain accurate product data and supply chain information at all stages of the logistics chain.
At present, the one-dimensional barcode/two-dimensional barcode identification technology has been widely used in the management of item classification and labeling. However, its barcode technology relies on visible light scanning reflection, has low recognition rate, is easy to break, contaminates, is sensitive to media such as water and oil, and stores a limited amount of information, which affects its application in large-scale logistics management.
RFID radio frequency identification technology is a typical representative of automatic identification technology. It has high recognition accuracy, reliable performance, large amount of stored information, resistance to oil and sewage washing, etc. It is especially suitable for automatic identification requirements in industrial environments. The use of RFID tags to replace barcodes and other identification products can effectively complete the automatic management of warehousing and realize automatic collection, automatic processing and information reporting of product information.
At present, the one-dimensional barcode/two-dimensional barcode identification technology has been widely used in the management of item classification and labeling. However, its barcode technology relies on visible light scanning reflection, has low recognition rate, is easy to break, contaminates, is sensitive to media such as water and oil, and stores a limited amount of information, which affects its application in large-scale logistics management.
RFID radio frequency identification technology is a typical representative of automatic identification technology. It has high recognition accuracy, reliable performance, large amount of stored information, resistance to oil and sewage washing, etc. It is especially suitable for automatic identification requirements in industrial environments. The use of RFID tags to replace barcodes and other identification products can effectively complete the automatic management of warehousing and realize automatic collection, automatic processing and information reporting of product information.
View Details
-
HH100Android Integrated RFID readerNew Shine serie - Android Integrated RFID reader HH100 Smart IoT device with integrated design but support 1 additional antenna port. Running with Impinj Indy R2000 chipset/ newest Impinj E710 RAIN RFID reader chip upgradable, and operated on Otca-core Android 9.0 operation system. It not only includes built-in 4G, WiFi, and Bluetooth as standard, and PoE (IEEE 802.3 af/at/bt) optional, but also supports built-in web management functions such as remote parameter configuration, MQTT, HTTP post, MySQL database transferring and so on.Details
-
HF100New 2-port Integrated RFID readerNew Sharp series Linux Super long reading Integrated RFID reader - HF100 2-port version integrated RFID reader is one of series Hopeland Fixed RFID Reader, integrated design but support 1 additional antenna port. Running with Impinj Indy R2000 chipset/ newest Impinj E710 RAIN RFID reader chip upgradable, and operated on Linux 2.6 operation system. It not only includes built-in 4G, WiFi, and Bluetooth, and PoE (IEEE 802.3 af/at/bt) optional, but also supports built-in web management functions such as remote parameter configuration, MQTT, HTTP post, MySQL database transferring and so on.Details
-
HZ100Long reading Integrated RFID ReaderHigh performance Integrated UHF RFID reader HZ100, updated from
CL7206B5A, supporting ISO18000-6C protocol, long range RFID reading,
fast identification, excellent multi-tag reading, strong anti-collision,
automatic reading, white list functions.
Widely used fixed asset management, logistic, warehouse inventory, products
tracking transshipment , e parking system vehicle management, production automation etc.Details -
HZ5404-port UHF RFID ModuleHZ540 module is a miniaturized UHF RFID reader. The core components of the core platform adopts R2000 which is a high-performance highly integrated reader IC and integrated with analog RF front-end and baseband digital signal processing modules etc.Details
