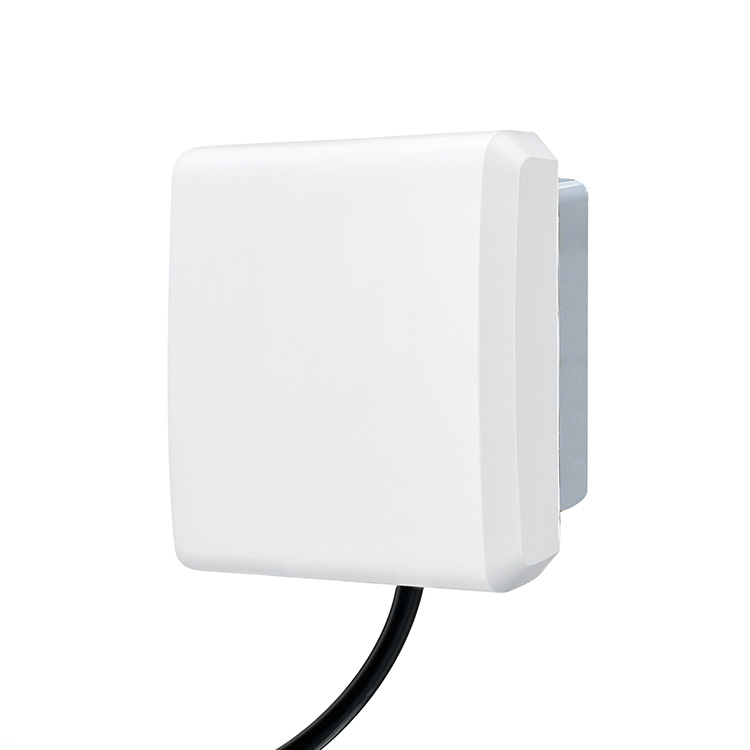

Mini Integrated RFID reader HZ140
Features
  • Impinj RAIN RFID E510
  • Windows platform / Android platform / Linux platform
  • RJ45, RS-232, RS-485 in standard Wiegand / Wi-Fi / Bluetooth optional
  • 0-12m Reading Distance (According to Tag & Environment)
  • RSSI / multi-tag / intensive inventory supportable
  • Output Power 0dBm-30dBm (±1dBm)
Get Quote
Highlights

Smart Sereis UHF RFID Mini Integrated Reader  HZ140


  • Powered by Impinj RAIN RFID E510 chip for better multiple tags‘ detection performance;
  • Delicate and compact design, more friendly with end users ;
  • Various communication/software interfaces help to better apply in different application systems;
  • Different developing languages SDK meet different developer needs;
  • Excellent communication protocol architecture supports faster data processing algorithm;
  • Special application projects customized interfaces / data transferring expandable;
  • Widely used in a variety of application scenarios, such as workstations, card issuance, retail cash register, card slots, access control, etc.



Smart Sereis UHF RFID Mini Integrated Reader  HZ140

  • Powered by Impinj RAIN RFID E510 chip for better multiple tags‘ detection performance;
  • Delicate and compact design, more friendly with end users ;
  • Various communication/software interfaces help to better apply in different application systems;
  • Different developing languages SDK meet different developer needs;
  • Excellent communication protocol architecture supports faster data processing algorithm;
  • Special application projects customized interfaces / data transferring expandable;
  • Widely used in a variety of application scenarios, such as workstations, card issuance, retail cash register, card slots, access control, etc.


Specifications
  • Hardware and Firmware
    Firmware Upgrade Demo Software
    API Support Windows platform
    Android platform
    Linux platform
  • Physical Characteristics
    Dimensions 133mm(L)*133mm(W)*52mm(H)
    Weight 0.75kg

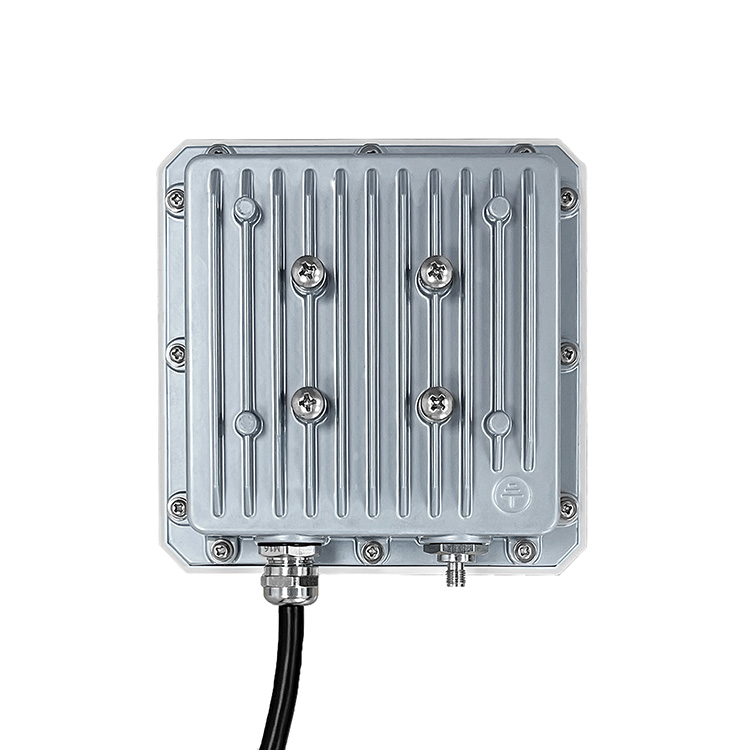

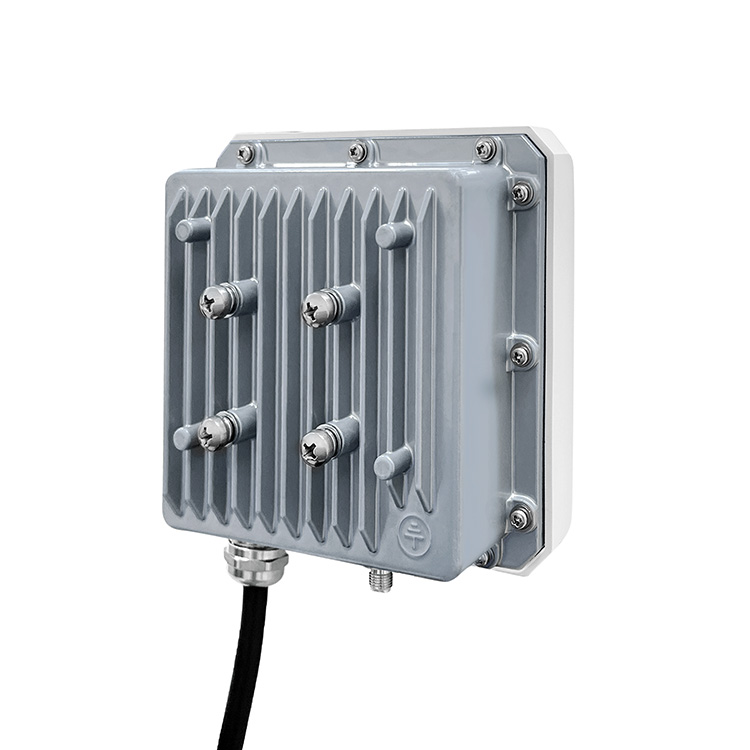

    Housing Material Die-cast aluminum / ABS cover
  • RFID Characteristics
    Air Protocols ISO/IEC18000-6C / EPC C1Gen2
    Chipset Impinj RAIN RFID E510 (E310 optional)
    Frequency USA: 902 MHz-928MHz (FCC part 15)
    EU: 865-868MHz (ETSI EN 302208)
    CN: 920-925MHz (CMIIT)
    Built-in antenna Circular 6dBi
    Reading Distance 0-12m (According to Tag & Environment)
  • Connectivity
    Communications RJ45, RS-232, RS-485 in standard
    Wiegand (26 34 66) and IO same interface,
    Wi-Fi 802.11b/g/n /Bluetooth BLE4.2 + SPP3.0 optional
    General Purpose I/O 1 input(DC 0~24V), 2 outputs (5V shared with wiegand function)
    Power supply DC 24V/2.5A (DC 9V ~ 30V, 10W)
Applications
Intelligent Transportation
Highway RFID Tolling
With the in-depth development of the world economy, the transportation infrastructure has been greatly improved. However, the traffic capacity of the road network is increasingly unable to meet the needs of traffic growth, and traffic congestion is becoming more and more serious, especially at high-speed toll stations. How to realize the effective command, coordinated control and management of various vehicles has become an important issue for traffic safety management department in different countries and regions.
RFID technology (radio frequency identification technology), as a revolutionary solution to security and management, can effectively solve the traffic issues. Hopeland provides a variety of RFID products, including UHF RFID readers, RFID Antennas, RFID vehicle tags, to promote the management of highway toll collections.
View Details
Intelligent Transportation
RFID Parking Access
Currently the vehicle management of parking yard mainly depends on manual recording, through manual transcribing the identification number at the front of the vehicle sequence number (the car in front of the bar code) registration identification.

Registered vehicles cannot be ensured in the field, although for different zoning, established the identity of cardboard. When we want to find out a specific vehicle, the process will be much time-consuming and cumbersome. Sometimes, some cars are not observed, the presence of area stopped for a long time and has not been sold. The stock situation cannot be timely to be controlled. For this situation, we need to implement automatic vehicle access registration, to achieve partition statistics, sales statistics, long stay and early-warning capabilities, making it imperative. Therefore, we need a new system to replace the existing system, which using more scientific and reasonable methods to reach vehicle monitoring.
View Details
