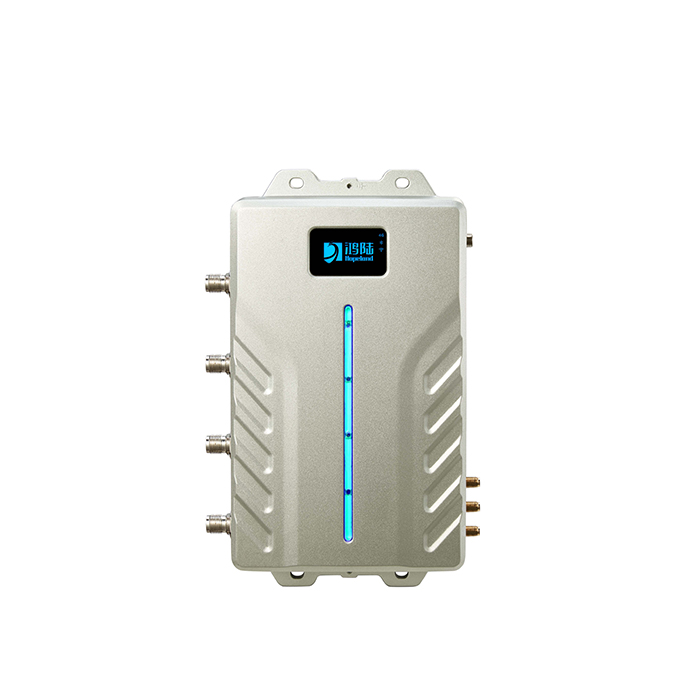

IoT Android Smart RFID Reader

Hopeland HH340 is a 4-port Android-based fixed RFID reader integrated with Impinj R2000/E710 RFID chip. This long range UHF RFID reader supports RJ45, RS485, Wiegand, USB, Bluetooth, WIFI, 4G, etc. as well as supports MQTT to provide real-time and reliable messaging services. It also supports sending data directly to the database.
  • IoT Android Smart RFID Reader
  • IoT Android Smart RFID Reader
  • IoT Android Smart RFID Reader
  • IoT Android Smart RFID Reader
IoT Android Smart RFID Reader
  • Impinj RAIN RFID E710 chip ( Indy R2000 optional)
  • Open development environment based on Android OS
  • Supports MQTT to send data to cloud servers in real-time
  • Supports HTTP POST communication to send tag data directly to a web URL
  • Supports sending data to database directly
  • RJ45, RS485, Wiegand, USB, Bluetooth, WiFi, 4G
  • Support antenna port detection, online updates
  • Supports RSSI and tag data filtering
Get Quote

  • System
    Processor MT6765, Octa Core 2.3Ghz
    Memory ROM 64GB; RAM 4GB
    Operation System Android 9.0 (open for developers)
    Firmware upgrade Demo software/Web page
    API Windows system– .Net / .Net core / C++ / Java SDK
    Android system- Java
    Linux system – Java, SDK
  • Environment
    Operating temperature -20℃~+70℃
    Storage temperature -40℃~+85℃
    Humidity 5%RH~95%RH(no condensation)
    Protection level IP5X, if outdoor use, support to add case
  • Physical
    Dimension 241mm×132mm×36mm
    Weight 1.0Kg
    Material Die-cast Aluminum
    Status indication Power, working status, antenna port, WiFi, 4G, Bluetooth
    Power consumption 25W
    Communication RJ45, RS485, OTG, Wiegand
    WiFi: 802.11 a/b/g/n/ac
    Bluetooth: BT v2.1+EDR, 3.0+HS, v4.1+HS
    I/O ports 4 optocoupler input (DC 0~4V), 4 relay output
    Power Supply DC 24V/2.5A (DC 9V~30V,60W) or POE(IEEE 802.3 af/at/bt)
    Display HDMI, 720P/1080P
    Antenna port 4 RP-TNC
  • RFID
    Protocol ISO/IEC 18000-6B,6C/EPC C1Gen2、C2Gen2,GB/T 29768-2013, GJB 7377.1
    Frequency FCC:902MHz~928MHz
    CN / EAC / ANATEL / TELEC / BIS / NBTC / KC and so on standards optional
    Ouput Power 0dBm~35dBm (±1dBm)
    (4 antennas 0-12dbi optional)
    Channel Occupied Bandwidth <200KHz
    Anti-collision Supports multi-tag/dense reading
    Operating mode Fixed frequency/frequency hopping optional
Intelligent Transportation
Highway RFID Tolling
With the in-depth development of the world economy, the transportation infrastructure has been greatly improved. However, the traffic capacity of the road network is increasingly unable to meet the needs of traffic growth, and traffic congestion is becoming more and more serious, especially at high-speed toll stations. How to realize the effective command, coordinated control and management of various vehicles has become an important issue for traffic safety management department in different countries and regions.
RFID technology (radio frequency identification technology), as a revolutionary solution to security and management, can effectively solve the traffic issues. Hopeland provides a variety of RFID products, including UHF RFID readers, RFID Antennas, RFID vehicle tags, to promote the management of highway toll collections.
View Details
Warehousing & Logistics
Smart Warehousing
Modern warehouse storage is not only to complete the simple batch processing of goods in and out, but also to make clear database records of the types, quantities, production attributes, stacking positions and other information of goods in the warehouse. In order to obtain accurate product data and supply chain information at all stages of the logistics chain.

At present, the one-dimensional barcode/two-dimensional barcode identification technology has been widely used in the management of item classification and labeling. However, its barcode technology relies on visible light scanning reflection, has low recognition rate, is easy to break, contaminates, is sensitive to media such as water and oil, and stores a limited amount of information, which affects its application in large-scale logistics management.

RFID radio frequency identification technology is a typical representative of automatic identification technology. It has high recognition accuracy, reliable performance, large amount of stored information, resistance to oil and sewage washing, etc. It is especially suitable for automatic identification requirements in industrial environments. The use of RFID tags to replace barcodes and other identification products can effectively complete the automatic management of warehousing and realize automatic collection, automatic processing and information reporting of product information.
View Details
