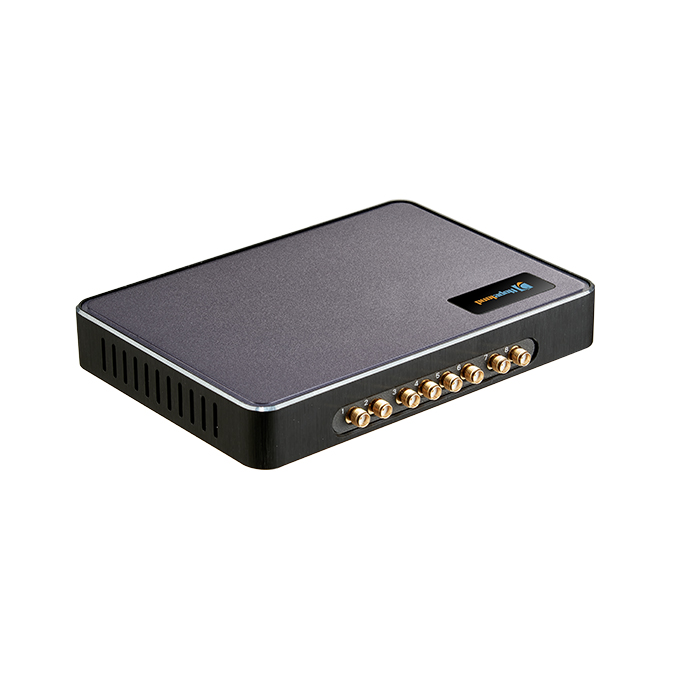

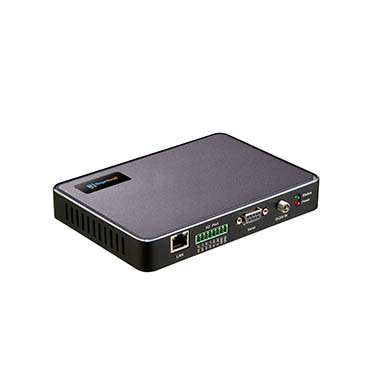

HZ380
Smart Series
8-Port Reader
Multi-port fixed UHF RFID reading and writing device, supports
ISO18000-6C / 6B two protocols, output power 0~30dBm optional,
with high recognition sensitivity, fast speed,strong anti-interference
ability.
Multi-antenna identification efficiency, structure anti-collision shock
and other characteristics.
ISO18000-6C / 6B two protocols, output power 0~30dBm optional,
with high recognition sensitivity, fast speed,strong anti-interference
ability.
Multi-antenna identification efficiency, structure anti-collision shock
and other characteristics.
/
Cost-effective 8 Ports Reader
Features
-
Using Impinj R2000 chip -
Communication port: RJ45、RS232 -
Support antenna detection function -
Industrial, easy-to-install I/O port -
Support antenna port detection
-
Supports RSSI and tag data filtering
Highlights
Specifications
-
SDK&Firmware
Firmware Upgrade demo software API Windows system– .Net / .Net core / C++ / Java
Android system - Android
Linux system – Java SDK -
Environment
Operating temperature -20℃～+70℃ Storage temperature -40℃～+85℃ Humidity 5%RH～95%RH Protection IP53 -
RFID
Protocol ISO18000-6C/6B Frequency FCC: 902MHz～928MHz
ETSI: 865MHz～868MHz
Output Power 0dBm-30dBm (±1dBm) Channel Bandwidth ＜200KHz Anti-collision Algorithm Fixed frequency/frequency hopping optional Operating mode Supports multi-tag/intensive read and write -
Physical

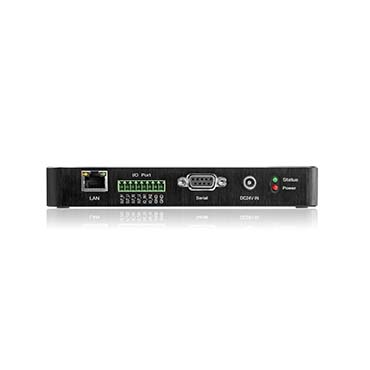

Dimension 170mm×120mm×25mm Weight 0.5Kg Material Milling aluminum Indicator light Power supply, working status Communication RJ45, RS232 I/O Ports 2-way optocoupler input, 2-way relay output Power DC 24V/2.5A Antenna Port 8 SMA port
Applications
