HT100

Industrial Integrated RFID Reader

HT100 is a product independently developed by Shenzhen Hopeland Technology Co., Ltd. This product is a high-performance UHF RFID reading and writing equipment with exquisite and beautiful appearance. It supports ISO18000-6C EPC C1G2 protocol, and is mainly used in production line station management and other scenarios.
  • 香水
  • 香水
  • 香水
  • 香水
  • 香水

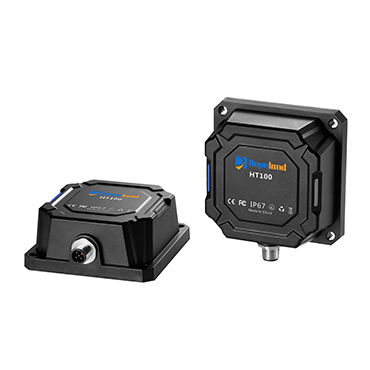

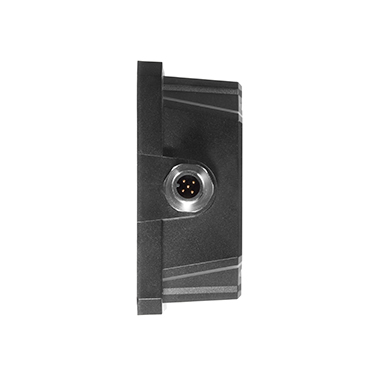

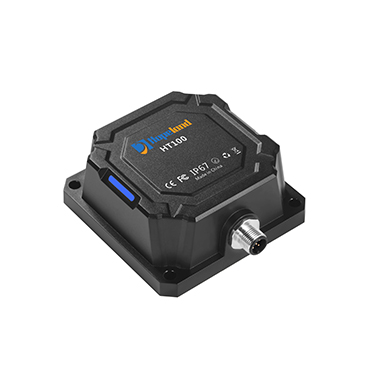

HT100 Industrial Integrated RFID Reader
Features
  • Powered by Impinj R2000
  • Support RSSI
  • Built with RS485 / RS232 / RJ45 interface
  • Support Modbus RTU/TCP
Get Quote
Highlights

  • Powered by Impinj R2000 RF scheme
  • Support RSSI: Sensing signal strength
  • Support adjustable RF output power
  • Support RS485 / RS232 / RJ45 interface
  • Support Modbus RTU/TCP & Hopeland command protocol (Dual Protocols)
  • Support automatic tag reading mode / command tag reading mode
  • Support tag reading indicators





Specifications
  • RFID CHARACTERISTICS
    Air Protocols SO18000-6C EPC C1G2
    Working frequency CHN:920MHz~925MHz,
    FCC:902MHz~928MHz ETSI:865MHz~868MHz, other customized frequency
    RF Output 23dBm±1dB(MAX)
    Channel bandwidth <200KHz
    Frequency stability ≤±10ppm
    Reading speed ≥800times/s
    Reading Distance 0m~120cm(According to Tag & Environment)
    Sensitivity ≤-80dBm
  • PHYSICAL CHARACTERISTICS
    Dimensions 92.5mm×92.5mm×38mm
    Weight 250g
    Protection Level IP67
    Sealing IP67
    Operating Temp. -25 ~ +80°C
    Storage Temp. -40 - +85°C
    Humidity 0-95% non-condensing (+25℃)
    Atmospheric pressure 86kPa~108kPa
Applications
Intelligent Transportation
Highway RFID Tolling
With the in-depth development of the world economy, the transportation infrastructure has been greatly improved. However, the traffic capacity of the road network is increasingly unable to meet the needs of traffic growth, and traffic congestion is becoming more and more serious, especially at high-speed toll stations. How to realize the effective command, coordinated control and management of various vehicles has become an important issue for traffic safety management department in different countries and regions.
RFID technology (radio frequency identification technology), as a revolutionary solution to security and management, can effectively solve the traffic issues. Hopeland provides a variety of RFID products, including UHF RFID readers, RFID Antennas, RFID vehicle tags, to promote the management of highway toll collections.
View Details
Intelligent Transportation
RFID Parking Access
Currently the vehicle management of parking yard mainly depends on manual recording, through manual transcribing the identification number at the front of the vehicle sequence number (the car in front of the bar code) registration identification.

Registered vehicles cannot be ensured in the field, although for different zoning, established the identity of cardboard. When we want to find out a specific vehicle, the process will be much time-consuming and cumbersome. Sometimes, some cars are not observed, the presence of area stopped for a long time and has not been sold. The stock situation cannot be timely to be controlled. For this situation, we need to implement automatic vehicle access registration, to achieve partition statistics, sales statistics, long stay and early-warning capabilities, making it imperative. Therefore, we need a new system to replace the existing system, which using more scientific and reasonable methods to reach vehicle monitoring.
View Details
Assest Management
Fixed Asset Management
The IT resource management department conducts unified management of the unit's IT equipment assets. At present, the asset management department adopts the traditional manual recording method together with office software and other tools to realize the input and statistics of asset data in the IT asset management of the computer room. The performance is as follows:
1) During the inventory and inspection of IT assets, the management personnel manually confirm the registration cards on the assets one by one, which is a huge workload. Under the current resource situation, it is almost impossible to complete the work of inventorying the assets one by one.
2) The management department defines the asset status information including in the library, entered into the account (after acceptance), reported loss, pending loss, not entered into the account (the contract has been purchased, but not entered into the account), etc. Assets in different states are saved through different databases , which not only easily causes confusion in data management, but also brings a lot of trouble to statistics and query.
3) The data of IT assets are classified and stored by year, which is inconvenient for query and statistics.
4) While doing asset management, it is also engaged in contract management functions. The current data cannot distinguish the asset ledger list one by one.
5) The device status information cannot be obtained in real time.
View Details
Warehousing & Logistics
Smart Warehousing
Modern warehouse storage is not only to complete the simple batch processing of goods in and out, but also to make clear database records of the types, quantities, production attributes, stacking positions and other information of goods in the warehouse. In order to obtain accurate product data and supply chain information at all stages of the logistics chain.

At present, the one-dimensional barcode/two-dimensional barcode identification technology has been widely used in the management of item classification and labeling. However, its barcode technology relies on visible light scanning reflection, has low recognition rate, is easy to break, contaminates, is sensitive to media such as water and oil, and stores a limited amount of information, which affects its application in large-scale logistics management.

RFID radio frequency identification technology is a typical representative of automatic identification technology. It has high recognition accuracy, reliable performance, large amount of stored information, resistance to oil and sewage washing, etc. It is especially suitable for automatic identification requirements in industrial environments. The use of RFID tags to replace barcodes and other identification products can effectively complete the automatic management of warehousing and realize automatic collection, automatic processing and information reporting of product information.
View Details
