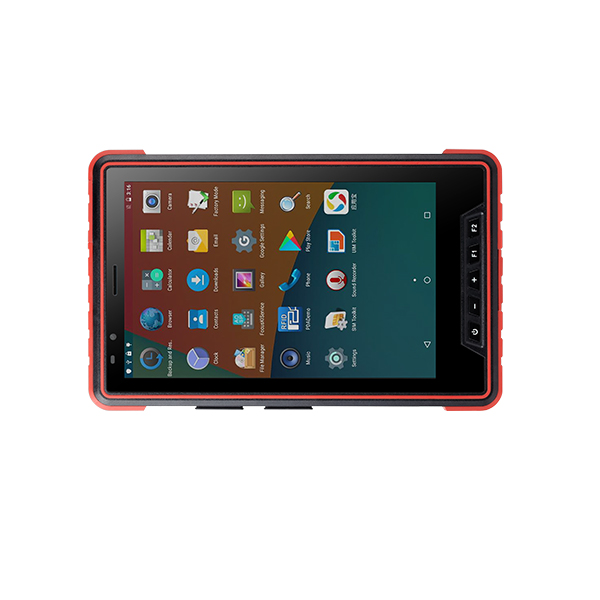

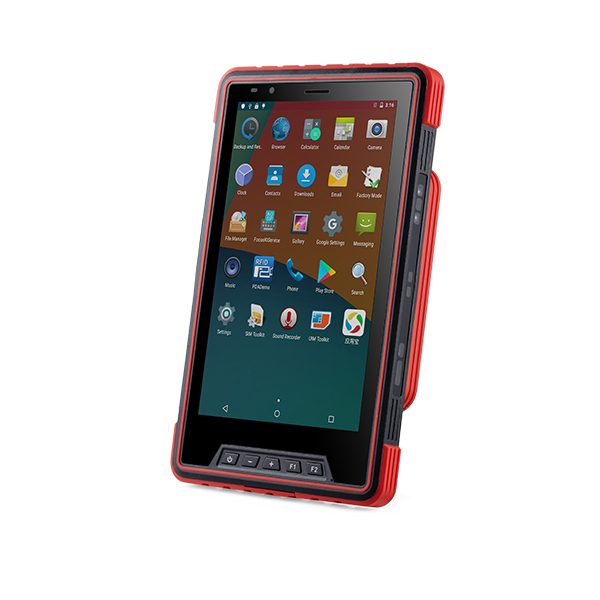

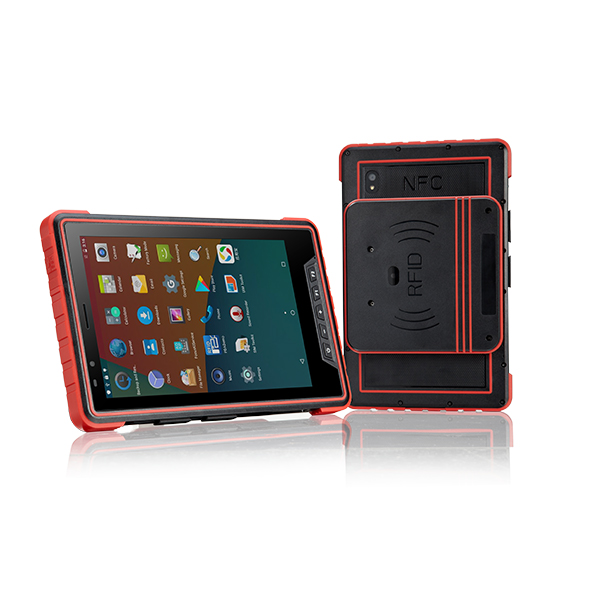

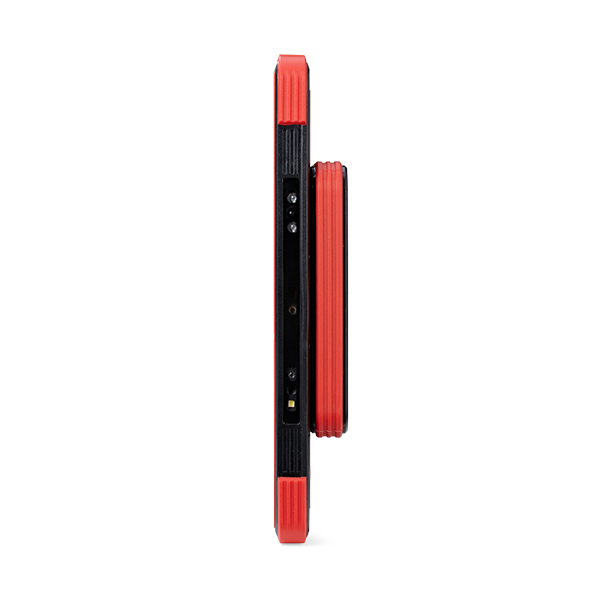

HL7202G9

RFID Industrial Tablet

HL7202G9 RFID Industrial Tablet Use Android 5.1 os,8-inch Multi-touch Capacitive Screen,Camera Front 8 Million, Rear 13 Million Pixels,Use 4G,Support HF/RFID。According to the ergonomic design, the appearance is exquisite, the protection level is high, the operation is comfortable and simple, easy to carry, high flexibility, suitable for use in various environmental conditions.
Features
  • Octa Core Frequency 1.5GHZ
  • Camera Front 8 Million, Rear 13 Million Pixels
  • 4G
  • Support HF/RFID
Get Quote
Highlights
Specifications
  • Performance Characteristics
    CPU ARM Cortex-A53 Eight-core Main frequency 1.5GHz
    Operating System Android 5.1
    Memory 3GB RAM / 32GB iNand FLASH ROM
    Display 8.0”TFT LCD 1280*800Pixel
    Standard I/O Port USB2.0 Type C×1 supports OTG
    Expansion Slot 1 Micro SD Slot, 2*SIM Slot, 2*PSAM Slot
    Notification Vibrator and Indicator LED, Speaker
  • Network Characteristics
    WiFi IEEE 802.11 b/g/n/a 2.4G/5G
    4G TD-LTE, FDD-LTE, WCDMA, EVDO(CDMA2000), GSM, CDMA 4G TDD-LTE :1900/2300/2500/2600MHz(B38/B39/B40/B41) 4G FDD-LTE : 1800/2100/2600 MHz (B1/B3/B7) 3G TD-SCDMA:1900/2100 MHZ (B34/B39) 3G WCDMA:850/900/1900/2100 MHz(B1/B2/B5/B8) 2G GSM:850/900/1800/1900 MHz(B2/B3/B5/B8) CDMA&EVDO: 800 MHz (BC0)
    Bluetooth Bluetooth V2.1+EDR/V3.0+HS/4.1
    GPS GPS + AGPS with internal Antenna
  • UHF & HF RFID
    Air Protocols ISO/IEC 18000-6B, ISO/IEC18000-6C / EPC C1G2
    Reading Distance 3~10m (According to Tag & Environment)
    Frequency USA:902-928MHz (FCC part 15) EU: 865-868MHz (ETSI EN 302 208) CHN:920-925MHz (CMII)
    Programing Function match reading / data filter RFID-temperature & humidity sensor data acquisition customizable
    Antenna Circular 4dBi
    RF output 0-30dBm
  • Physical Characteristics
    Dimensions (L x W x H) 230mm×144.5mm×16.5mm (without accessories)
    Keyboard Power key, volume up, volume down, function key F1 & F2
    Storage Temp. -30℃~+65℃
    Operating Temp. -30℃~+55℃
    Humidity 5% RH~95%RH (non-condensing)
    Drop Spec. 1.2M Drop to concrete
    Dust & Water Proof IP65
Applications
