i90

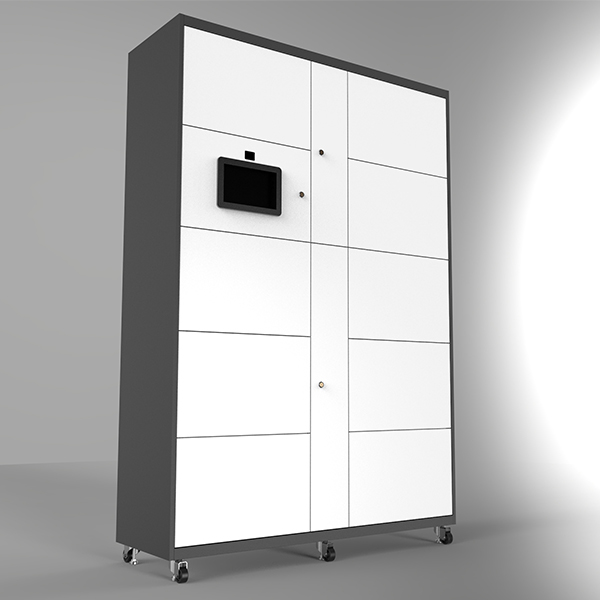

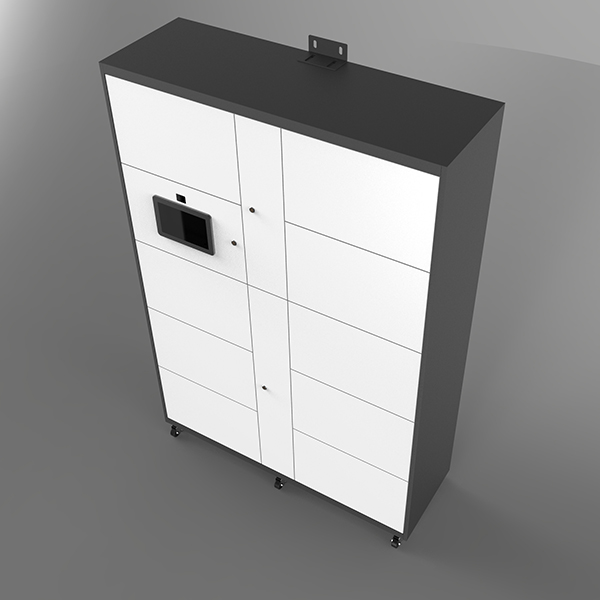

i90 RFID Cabinet

RFID smart cabinet system: It is to put the managed items in
the cabinet for centralized management, which can support
regular and fast inventory, add items or loan records, anti-theft
and other functions.
  • 香水
  • 香水
  • 香水
i90 RFID Cabinet for Library / Archives / bank
Features
  • Apply to archive inventory, tool tracking, entertainment, equipment rental management, etc;
  • Unique modern design, high quality metal material shelf.
  • 24 ports reader, with Impinj R2000 chip, long range multi-tag reading.
  • Fully Integrated with multiple function.
Get Quote
Highlights
Specifications
  • Parameters
    Size: 1817mm(H)*430mm(T)*1276mm(W)
    Weight: 230kg
    Capacity: 450mm*310mm*370mm
    Protection Level: IP3X
    Working Temperature: -20℃~60℃
    Storage Temperature: -40℃~70℃
    Relative Humidity: 5% RH to 95% RH (non-condensing state)
    Housing material: cold rolled sheet
    Power supply: 100-240V~,50/60Hz
    Power consumption: 60W
    Atmospheric Pressure: 86kPa~108kPa
    Different design, shape, and functions customized supportable:
  • UHF RFID
    Protocol: ISO/IEC18000-6C / EPC C1Gen2
    Chipset: Impinj R2000/E710
    Reader: HL7206C24 24 Port Reader
    Antenna: 9dbi Circular Antenna HL7205G
    Frequency: GB: 920MHz~925 MHz 840MHz~845 MHz FCC: 902MHz~928 MHz ETSI: 865MHz~868 MHz JP: 916MHz~920 MHz
    RF Output Power: 33dBm±1dB(MAX)
    Label Recognition Speed: >400 times / sec
    Communication Port: Ethernet interface, 10M/100M adaptive
    Work Mode: Frequency Hopping or Fixed
    Features: Built-in Android 7.1 Operating System
    10.1-inch Display
    Anti-collision protocol, strong multi-tag identification
    Support for intensive reading
    Support antenna detection function
    Support online upgrade
    Support tag data filtering
    Support RSSI perceptible signal strength
Applications
Warehousing & Logistics
Smart Meter Warehousing
Electric energy meters are not only power operation equipment, but also a key device for trade settlement and business assessment of power products. Establishing a complete, refined and correct probability asset management is not only an important basis for the improvement of marketing technology equipment, but also an important part of the construction of power grids and ERP systems. , put forward an urgent need for the refined management of electric energy meters;

Using barcode technology for data acquisition requires reading every electric energy meter, the work efficiency is very low, and it takes more time to enter and leave the warehouse. At the same time, manual operation may damage the electric energy meter and increase the cost of warehouse management.
View Details
Assest Management
Material Turnover Solution
The turnover cabinet is mainly composed of the main control cabinet and several auxiliary cabinets such as single-phase meter storage cabinets, three-phase meter (terminal) storage cabinets, accessories storage cabinets, transformer storage cabinets and turnover box storage cabinets.

Main control cabinet: The main control cabinet is mainly composed of face recognition module, barcode recognition module, fingerprint recognition module, touch screen, industrial computer, etc. It mainly realizes the corresponding business logic functions, and conducts data interaction and docking with the marketing system or measurement production management platform. It is the central processing center of the entire turnover cabinet. The main control cabinet can optimize the space structure and has the function of equipment storage.

Auxiliary cabinet: The auxiliary cabinet can store single-phase electric meter, three-phase electric meter, metering automation terminal, low-voltage current transformer, air switch and communication module and other equipment.
View Details
Assest Management
Fixed Asset Management
The IT resource management department conducts unified management of the unit's IT equipment assets. At present, the asset management department adopts the traditional manual recording method together with office software and other tools to realize the input and statistics of asset data in the IT asset management of the computer room. The performance is as follows:
1) During the inventory and inspection of IT assets, the management personnel manually confirm the registration cards on the assets one by one, which is a huge workload. Under the current resource situation, it is almost impossible to complete the work of inventorying the assets one by one.
2) The management department defines the asset status information including in the library, entered into the account (after acceptance), reported loss, pending loss, not entered into the account (the contract has been purchased, but not entered into the account), etc. Assets in different states are saved through different databases , which not only easily causes confusion in data management, but also brings a lot of trouble to statistics and query.
3) The data of IT assets are classified and stored by year, which is inconvenient for query and statistics.
4) While doing asset management, it is also engaged in contract management functions. The current data cannot distinguish the asset ledger list one by one.
5) The device status information cannot be obtained in real time.
View Details
Smart Retail
Smart Retail Store
Pain points in traditional retail stores
Operating aspects:
The operating costs of common convenience stores continue to rise
The cost of rent
convenience stores and merchants are more and more concerned with the capital. But the store resources are relatively scarce, and the pressure on the rising cost of rent will continue to exist in the future.
Labor costs
The decline of the working age workforce increases the labor cost. The increase of convenience store staff mobility and the increase of personnel costs and management costs.
The cost of water and electricity
The relative area is larger and the water power consumption is more.
Consumer aspects:
Purchasing daily necessities is inconvenient and far away.
There is no 24-hour store in the evening, and difficult to meet any emergency.
View Details
Warehousing & Logistics
Smart Warehousing
Modern warehouse storage is not only to complete the simple batch processing of goods in and out, but also to make clear database records of the types, quantities, production attributes, stacking positions and other information of goods in the warehouse. In order to obtain accurate product data and supply chain information at all stages of the logistics chain.

At present, the one-dimensional barcode/two-dimensional barcode identification technology has been widely used in the management of item classification and labeling. However, its barcode technology relies on visible light scanning reflection, has low recognition rate, is easy to break, contaminates, is sensitive to media such as water and oil, and stores a limited amount of information, which affects its application in large-scale logistics management.

RFID radio frequency identification technology is a typical representative of automatic identification technology. It has high recognition accuracy, reliable performance, large amount of stored information, resistance to oil and sewage washing, etc. It is especially suitable for automatic identification requirements in industrial environments. The use of RFID tags to replace barcodes and other identification products can effectively complete the automatic management of warehousing and realize automatic collection, automatic processing and information reporting of product information.
View Details
Smart Power Solution
Tool Management Solutions
Traditional tool management methods generally rely on non-automated, paper-based systems to record, track and manage; a few use barcodes to identify and manage assets; but the efficiency is extremely low, with the increase in the number of assets, extremely The earth has increased the burden of management personnel, a serious waste of human resources, and also increased the difficulty of tool management, often resulting in untimely data and high error rates. Often the inventory management is chaotic, and the inbound and outbound data is wrong. If it is left to exist on a large scale for a long time, it will bring great cost problems to the enterprise.

In terms of tool management application technology, traditional automatic identification technologies such as one-dimensional bar code/two-dimensional bar code have also been widely used in the management of item classification and labeling. However, the barcode technology itself relies on the visible light scanning reflection, the recognition rate is low, the barcode is easily damaged and stained, and the amount of stored information is small. Generally, it only identifies a certain type of product, which affects its wide application in logistics management.

Compared with barcode technology, RFID radio frequency identification technology is a typical representative of non-contact long-distance automatic identification technology. RFID technology has high recognition accuracy, reliable performance, large amount of stored information, and oil and sewage resistance, especially suitable for automatic identification requirements in harsh working environments. The use of RFID tags to replace barcodes and other identified goods can effectively complete the automatic management of assets, and realize the automatic collection, automatic processing and report output of asset information.
View Details
