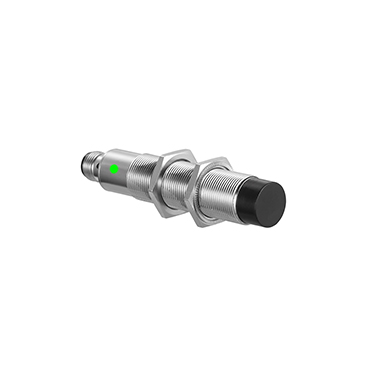

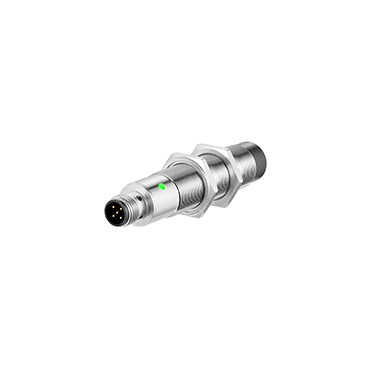

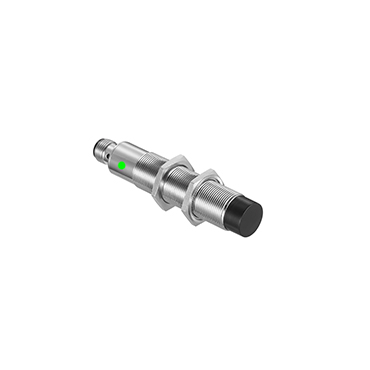

HT110W

Industrial Integrated HF Reader

All-in-one independently developed reader, high-performance HF RFID
reading and writing equipment with exquisite and beautiful appearance.
It supports ISO15693, ISO14443A and other protocols, and is mainly used
in production line station management and other scenarios.
  • 香水
  • 香水
  • 香水
  • 香水
  • 香水
HT100W Industrial Integrated HF Reader
Features
  • ISO15693, ISO14443A Supported
  • IP67
Get Quote
Highlights

1.Powered by ST25R3916 RF scheme

2.Support RS485 / RS232 interface

3.Support Modbus RTU & Hopeland command protocol (Dual Protocols)

4.Support automatic tag reading mode / Command tag reading mode

5.Support tag reading indicators



Specifications
  • MAIN FEATURES
    Air Protocols ISO15693, ISO14443A
    Features Support online upgrade
    Support tag reading indicators
    Work Mode Automatic tag reading mode
    Command tag reading mode
  • PHYSICAL CHARACTERISTICS
    Dimensions φ18×93.15mm
    Weight 65g
  • RFID CHARACTERISTICS
    Working frequency 13.56Mhz
    Reading speed ≥100times/s
    Reading Distance 0m~60mm(According to Tag & Environment)
  • CONNECTIVITY
    RS232 115200bps(default)
    RS485 115200bps(default)
    Power Supply 12~24V
    Power Consumption ≤1.35W
    Standby Power ≤0.65W
  • ENVIRONMENTAL
    Operating Temp. -25 ~ +80°C
    Storage Temp. -40 ~ +85°C
    Humidity 0%RH-95%RH non-condensing (+25℃)
    Atmospheric pressure 86kPa~108kPa
    Sealing IP67
Applications
Assest Management
Material Turnover Solution
The turnover cabinet is mainly composed of the main control cabinet and several auxiliary cabinets such as single-phase meter storage cabinets, three-phase meter (terminal) storage cabinets, accessories storage cabinets, transformer storage cabinets and turnover box storage cabinets.

Main control cabinet: The main control cabinet is mainly composed of face recognition module, barcode recognition module, fingerprint recognition module, touch screen, industrial computer, etc. It mainly realizes the corresponding business logic functions, and conducts data interaction and docking with the marketing system or measurement production management platform. It is the central processing center of the entire turnover cabinet. The main control cabinet can optimize the space structure and has the function of equipment storage.

Auxiliary cabinet: The auxiliary cabinet can store single-phase electric meter, three-phase electric meter, metering automation terminal, low-voltage current transformer, air switch and communication module and other equipment.
View Details
Assest Management
Fixed Asset Management
The IT resource management department conducts unified management of the unit's IT equipment assets. At present, the asset management department adopts the traditional manual recording method together with office software and other tools to realize the input and statistics of asset data in the IT asset management of the computer room. The performance is as follows:
1) During the inventory and inspection of IT assets, the management personnel manually confirm the registration cards on the assets one by one, which is a huge workload. Under the current resource situation, it is almost impossible to complete the work of inventorying the assets one by one.
2) The management department defines the asset status information including in the library, entered into the account (after acceptance), reported loss, pending loss, not entered into the account (the contract has been purchased, but not entered into the account), etc. Assets in different states are saved through different databases , which not only easily causes confusion in data management, but also brings a lot of trouble to statistics and query.
3) The data of IT assets are classified and stored by year, which is inconvenient for query and statistics.
4) While doing asset management, it is also engaged in contract management functions. The current data cannot distinguish the asset ledger list one by one.
5) The device status information cannot be obtained in real time.
View Details
Smart Power Solution
Tool Management Solutions
Traditional tool management methods generally rely on non-automated, paper-based systems to record, track and manage; a few use barcodes to identify and manage assets; but the efficiency is extremely low, with the increase in the number of assets, extremely The earth has increased the burden of management personnel, a serious waste of human resources, and also increased the difficulty of tool management, often resulting in untimely data and high error rates. Often the inventory management is chaotic, and the inbound and outbound data is wrong. If it is left to exist on a large scale for a long time, it will bring great cost problems to the enterprise.

In terms of tool management application technology, traditional automatic identification technologies such as one-dimensional bar code/two-dimensional bar code have also been widely used in the management of item classification and labeling. However, the barcode technology itself relies on the visible light scanning reflection, the recognition rate is low, the barcode is easily damaged and stained, and the amount of stored information is small. Generally, it only identifies a certain type of product, which affects its wide application in logistics management.

Compared with barcode technology, RFID radio frequency identification technology is a typical representative of non-contact long-distance automatic identification technology. RFID technology has high recognition accuracy, reliable performance, large amount of stored information, and oil and sewage resistance, especially suitable for automatic identification requirements in harsh working environments. The use of RFID tags to replace barcodes and other identified goods can effectively complete the automatic management of assets, and realize the automatic collection, automatic processing and report output of asset information.
View Details
