HL7202K8

Bluetooth RFID
Handheld Reader

Support Bluetooth V4.2/2.1+EDR
Exquisite Appearance, High Protection Level
Comfortable And Simple Operation, Easy To Carry
High Flexibility Suitable To Use In Various Environment
  • 香水
  • 香水
  • 香水
  • 香水
  • 香水

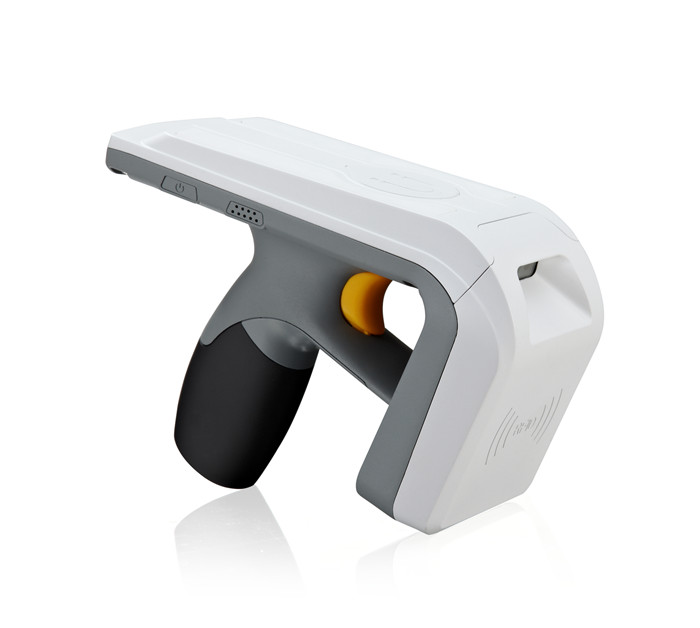

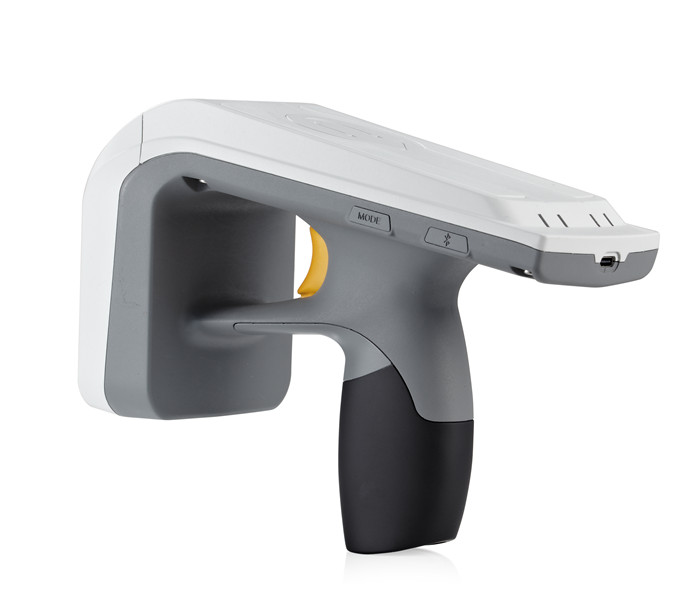

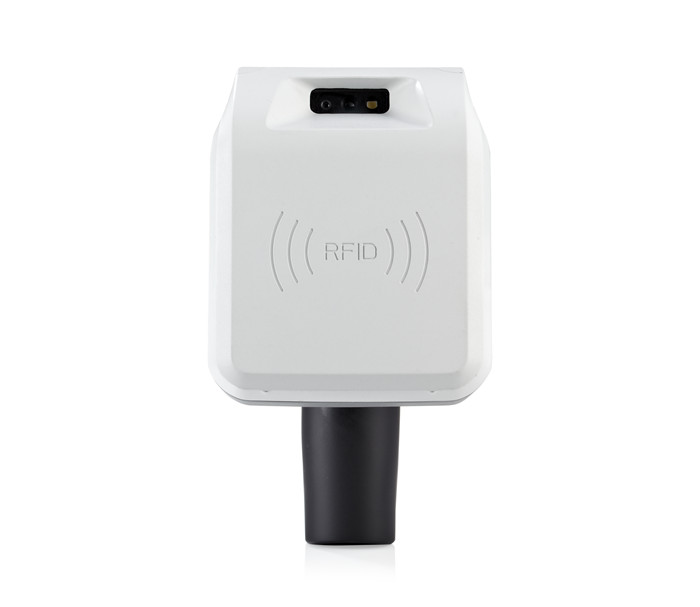

HL7202K8 Bluetooth Handheld Reader
Features
  • Support Bluetooth V4.2/2.1+EDR
  • Long Read Distance With 10M
  • Impinj Indy R2000 Chipset
  • Long Battery Life Up To 8 Hours
  • 1.2M Drop Test
Get Quote
Highlights

*  Flexible working with most Android OS devices

*  Impinj Indy R2000 chipset brings strong prime mover

*  5000mAh large battery capacity supports 8 hours continue working ability

*  Humanist design with hand grip ergonomic for comfortable

*  Various communication transfer method options match various applications
































Widely used in ITS

/ Smart Grid, execution inspection, warehousing & logistic, Smart retail

Specifications
  • Performance Characteristics
    Bluetooth Bluetooth V2.1+EDR/V3.0+HS/4.1 communication distance is not less than 10m
    Indicators Bluetooth Indicator, Power Indicator, Mode Indicator, Status Indicator
    Barcode Engine 1D Laser or 2D Imager Barcode Scanner
  • RFID
    Air Protocols ISO/IEC 18000-6B, ISO/IEC18000-6C / EPC C1G2, C2GEN2 optional
    Reading Range 3~10m (According to Tag & Environment)
    Antenna 1* 4dBi circular
    RF output 0-30dBm (±1dBm) adjustable
    Frequency USA:902-928MHz (FCC part 15)
    EU: 865-868MHz (ETSI EN 302 208)
    CHN:920-925MHz(CMII)
    Other frequency & standard optional
  • Physical Characteristics
    Dimensions(L x W x H) 130mm(L)*83.5mm(W)*176mm(H)
    Net. weight 0.4Kg
    User Input Function Button, Trigger, Bluetooth Button, Power Button
  • Environmental parameters
    Storage Temp. -30℃~+65℃
    Operating Temp. -20℃~+55℃
    Humidity 5% RH~95%RH (non-condensing)
    Drop Test 1.2M Drop to concrete
    Dust & Water Proof IP53
  • Power Supply
    Battery Supply 3.7V 5000mAh Li-ion battery
    Main Battery(Replaceable ) DC 5V adapter, follow local standards
Applications
Assest Management
Fixed Asset Management
The IT resource management department conducts unified management of the unit's IT equipment assets. At present, the asset management department adopts the traditional manual recording method together with office software and other tools to realize the input and statistics of asset data in the IT asset management of the computer room. The performance is as follows:
1) During the inventory and inspection of IT assets, the management personnel manually confirm the registration cards on the assets one by one, which is a huge workload. Under the current resource situation, it is almost impossible to complete the work of inventorying the assets one by one.
2) The management department defines the asset status information including in the library, entered into the account (after acceptance), reported loss, pending loss, not entered into the account (the contract has been purchased, but not entered into the account), etc. Assets in different states are saved through different databases , which not only easily causes confusion in data management, but also brings a lot of trouble to statistics and query.
3) The data of IT assets are classified and stored by year, which is inconvenient for query and statistics.
4) While doing asset management, it is also engaged in contract management functions. The current data cannot distinguish the asset ledger list one by one.
5) The device status information cannot be obtained in real time.
View Details
Smart Retail
RFID Smart Refrigerator
With the rising cost of human resources and the increasing demand for the ultimate shopping experience, consumers are more comfortable with access to food and beverages anytime and anywhere. This has led to the emergence of smart new retail methods such as unmanned convenience stores, smart refrigerators, and smart vending machines. Among them, unmanned vending machines are one of the most common ones in daily life.

At same time, retail companies need to track all goods inventory status, improve operational efficiency, save labor cost and analysis customer's purchase trend to increase revenue. RFID technology can help them achieve it effortlessly. Nowadays, RFID technology is widely used in retail. The automatic retail fridge is built with RFID UHF hardware, so that retailers can track the goods status at any time. More importantly, smart RFID refrigerators enable buyer to finish purchase process alone and automatically.
View Details
Smart Retail
Smart Retail Store
Pain points in traditional retail stores
Operating aspects:
The operating costs of common convenience stores continue to rise
The cost of rent
convenience stores and merchants are more and more concerned with the capital. But the store resources are relatively scarce, and the pressure on the rising cost of rent will continue to exist in the future.
Labor costs
The decline of the working age workforce increases the labor cost. The increase of convenience store staff mobility and the increase of personnel costs and management costs.
The cost of water and electricity
The relative area is larger and the water power consumption is more.
Consumer aspects:
Purchasing daily necessities is inconvenient and far away.
There is no 24-hour store in the evening, and difficult to meet any emergency.
View Details
Warehousing & Logistics
Smart Warehousing
Modern warehouse storage is not only to complete the simple batch processing of goods in and out, but also to make clear database records of the types, quantities, production attributes, stacking positions and other information of goods in the warehouse. In order to obtain accurate product data and supply chain information at all stages of the logistics chain.

At present, the one-dimensional barcode/two-dimensional barcode identification technology has been widely used in the management of item classification and labeling. However, its barcode technology relies on visible light scanning reflection, has low recognition rate, is easy to break, contaminates, is sensitive to media such as water and oil, and stores a limited amount of information, which affects its application in large-scale logistics management.

RFID radio frequency identification technology is a typical representative of automatic identification technology. It has high recognition accuracy, reliable performance, large amount of stored information, resistance to oil and sewage washing, etc. It is especially suitable for automatic identification requirements in industrial environments. The use of RFID tags to replace barcodes and other identification products can effectively complete the automatic management of warehousing and realize automatic collection, automatic processing and information reporting of product information.
View Details
